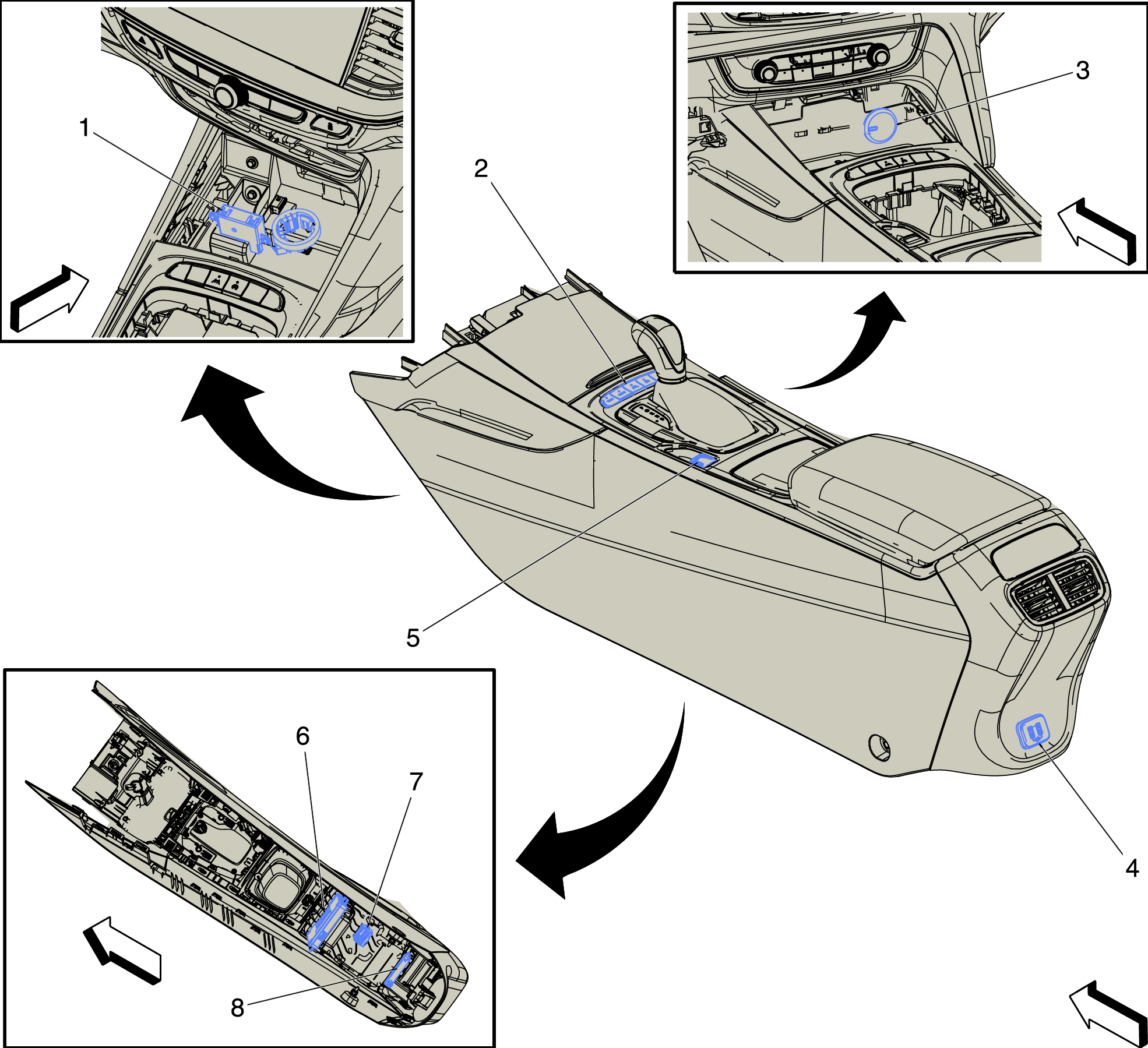

Floor Console Components

GM4782622
Floor Console Components

Items
1 K89 Immobilizer Control Module K89 Immobilizer Control Module
2 S48E Multifunction Switch - Center Console S48E Multifunction Switch - Center Console ()
3 X80H Accessory Power Receptacle - Center Console X80H Accessory Power Receptacle - Center Console
4 X92 USB Receptacle (USB) X92 USB Receptacle
5 S91 Park Brake Control Switch S91 Park Brake Control Switch
6 T22 Mobile Device Wireless Charger Module (K4C) T22 Mobile Device Wireless Charger Module (K4C)
7 X83 Auxiliary Audio Input (MCR) X83 Auxiliary Audio Input X1X83 Auxiliary Audio Input X2
8 T10K Keyless Entry Antenna - Center Console Rear T10K Keyless Entry Antenna - Center Console Rear
