Steering Wheel Heat Control Module Replacement

Callout	Component Name
Preliminary Procedure Steering Wheel Airbag Replacement Cruise Control Switch Replacement Radio Control Switch Replacement - Steering Wheel

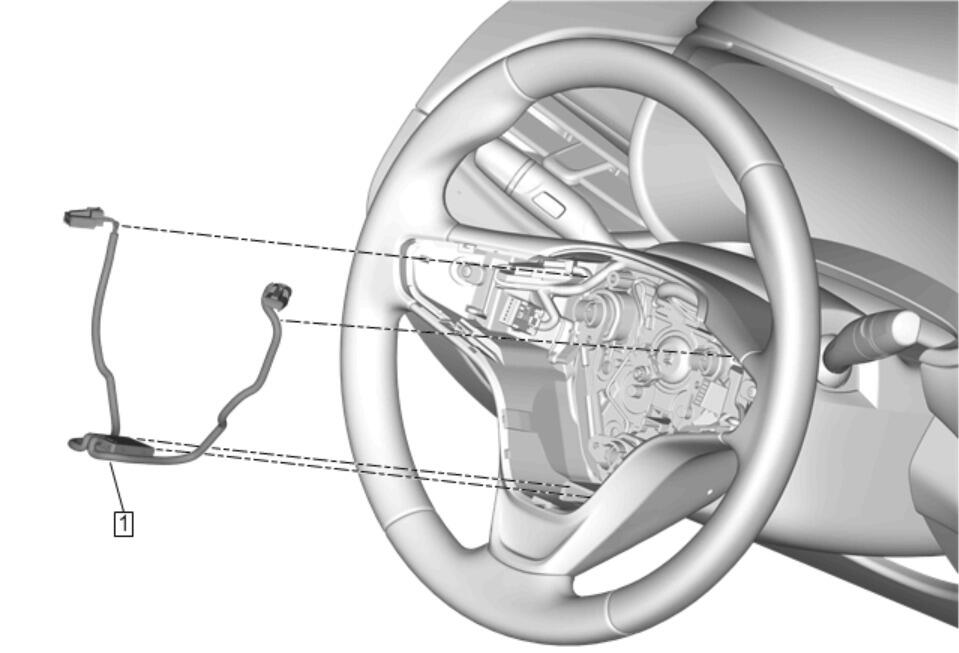

1	Steering Wheel Heat Control Module Procedure Disconnect the electrical connectors. Remove the steering wheel heat control module wiring harness from the steering wheel. Remove the steering wheel heat control module from the steering wheel.

Callout

Component Name

Steering Wheel Heat Control Module

Procedure

Disconnect the electrical connectors.
Remove the steering wheel heat control module wiring harness from the steering wheel.
Remove the steering wheel heat control module from the steering wheel.
