Front Seat Belt Guide Adjuster Replacement

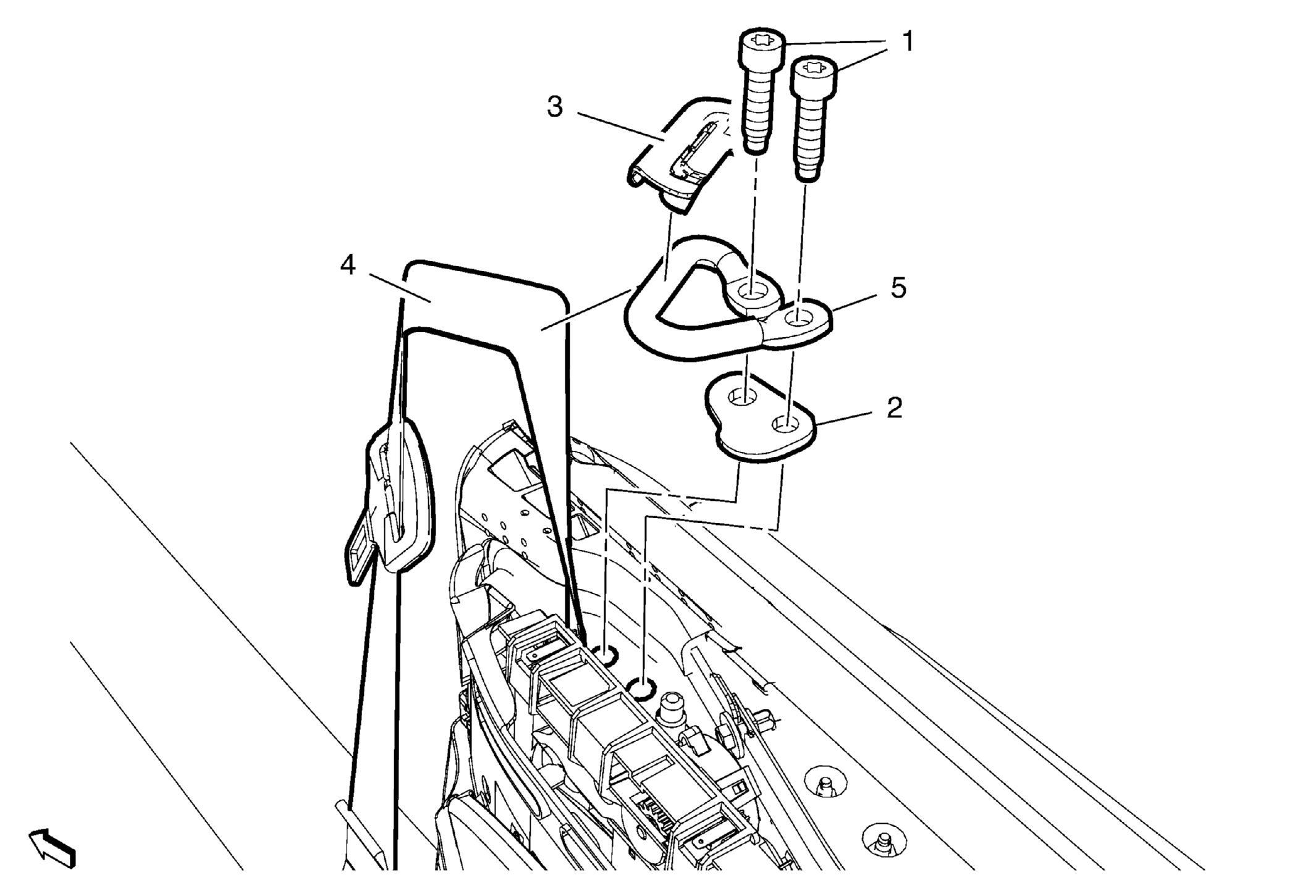

Callout	Component Name
Preliminary Procedure Remove the quarter upper trim panel. Refer to Quarter Upper Trim Panel Replacement .
1	Front Seat Belt Guide Adjuster Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Clean the threads with an appropriate thread chaser. Fasteners are microencapsulated. Install NEW driver or passenger seat bolts. DO NOT reuse the old bolts. Tighten 45 N.m (33 lb ft)
2	Front Seat Belt Fixation Plate
3	Front Seat Belt Guide Adjuster Cover Procedure Unclip the cover from the front seat belt guide adjuster.
4	Front Seat Belt Procedure Remove the front seat belt from the rear seat belt guide adjuster.
5	Front Seat Belt Guide Adjuster
