Serial Data Gateway Module Replacement (Encore)

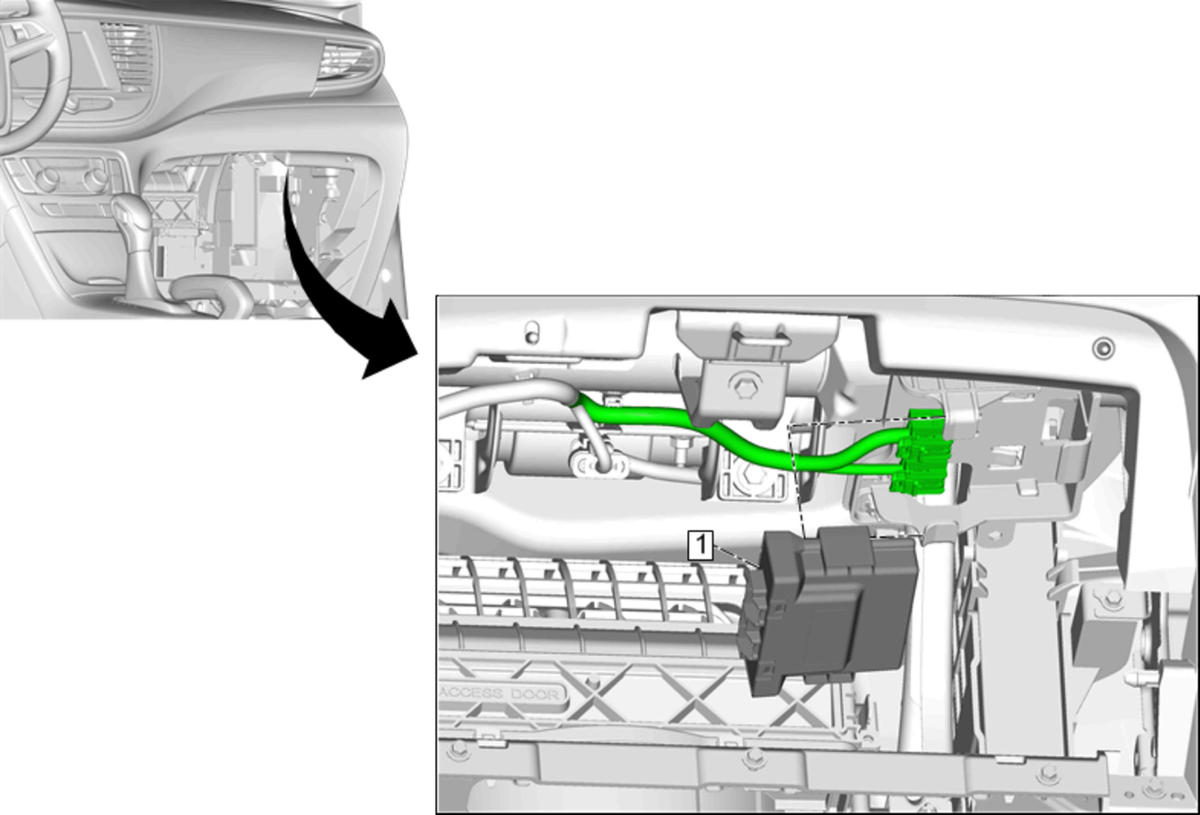

GM4368122Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Compartment Replacement
1 Serial Data Gateway Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Perform the necessary programming and setup procedure:Control Module References
