Keyless Entry Control Module Replacement

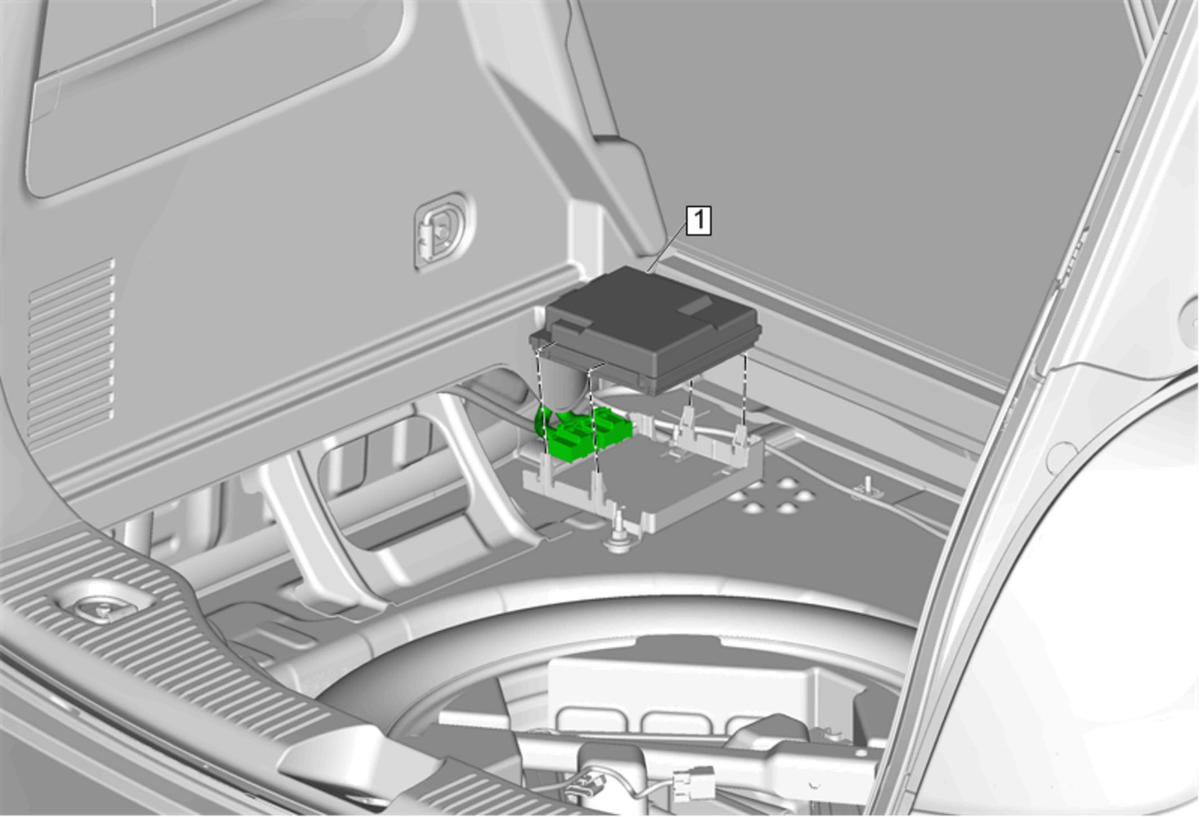

GM4372054Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Load Floor Front Trim Panel Support Replacement (Encore)Load Floor Front Trim Panel Support Replacement (Trax)
1 Keyless Entry Control Module

Procedure

  1. Disconnect the electrical connectors.
  2. Release the retaining tabs.
  3. Perform the necessary programming and setup procedure:Control Module References
