Low Frequency Console Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Front Floor Console Replacement (Encore)Front Floor Console Replacement (Trax)

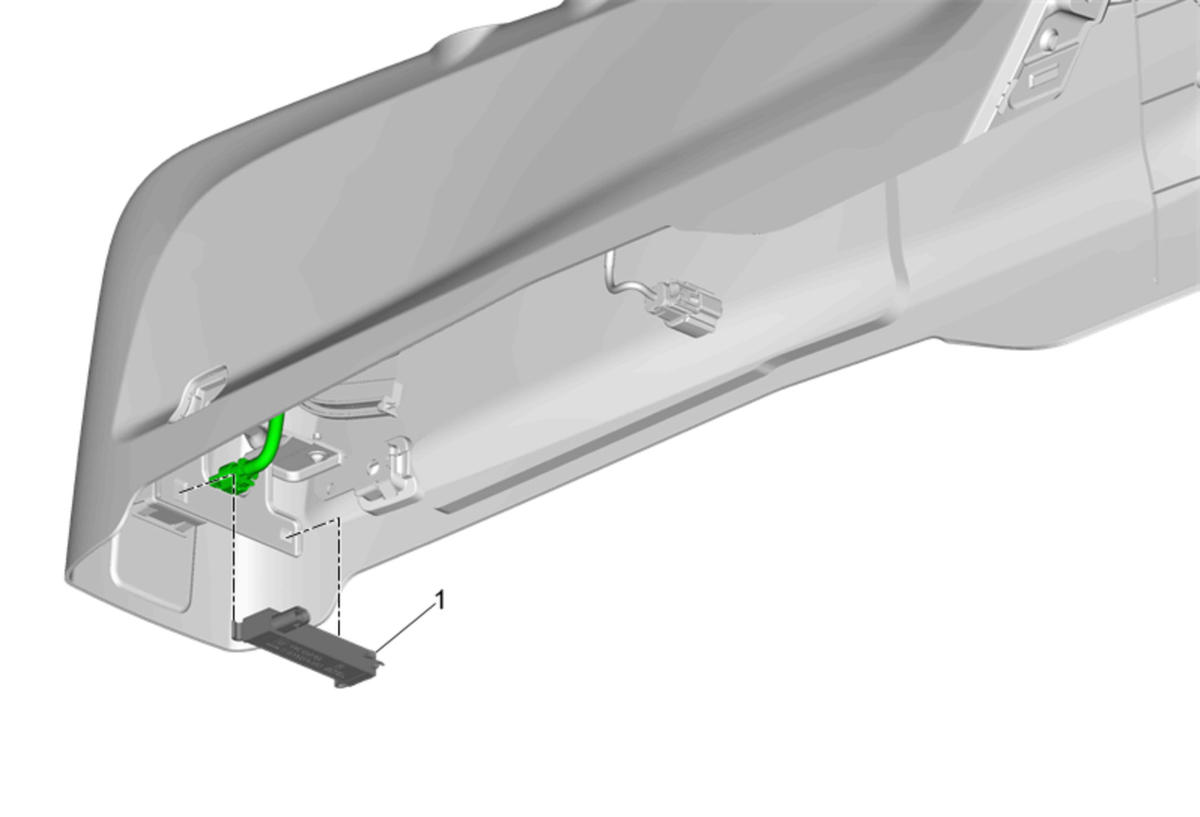

1	Low Frequency Console Antenna Procedure Disconnect the electrical connector. Release the retaining tab.

Callout

Component Name

Low Frequency Console Antenna

Procedure
