Low Frequency Instrument Panel Antenna Replacement (Encore)

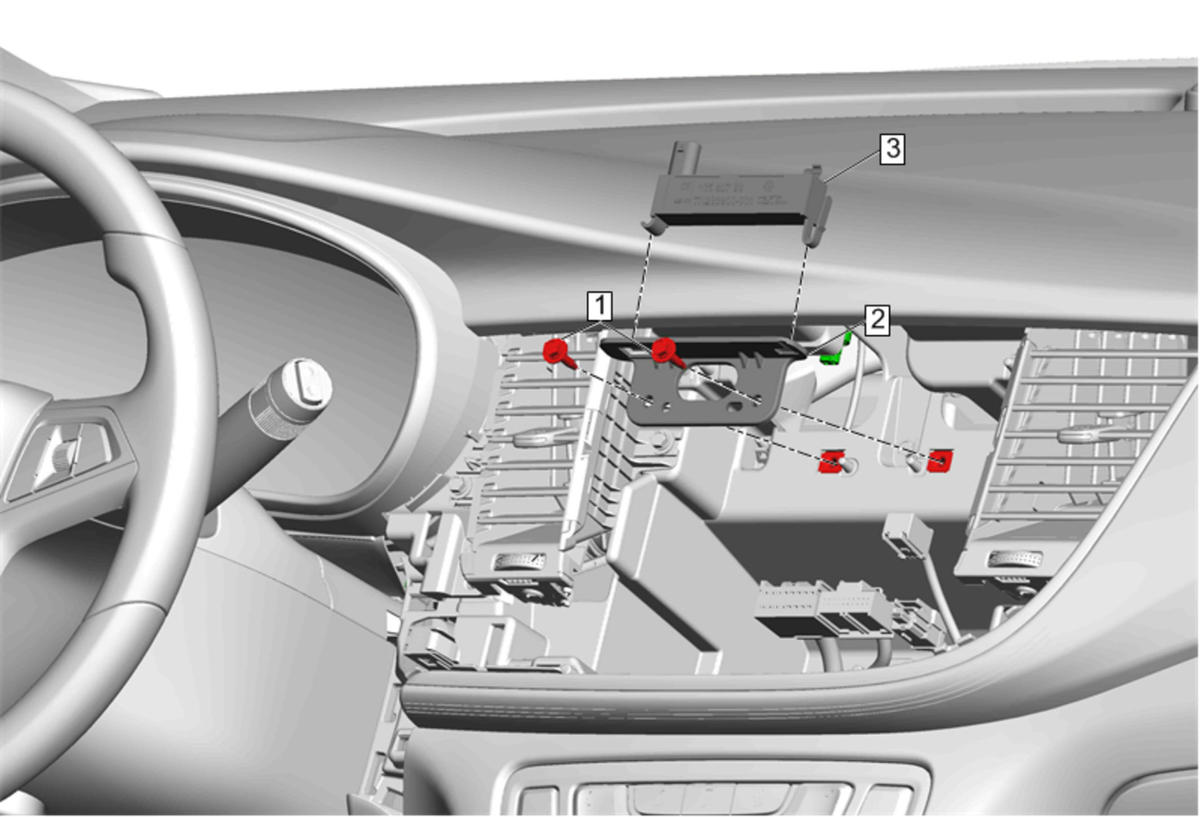

GM4372155Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Radio Control Assembly Replacement (Encore)
1 Low Frequency Instrument Panel Antenna Bracket Bolt
CAUTION:

Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Low Frequency Instrument Panel Antenna Bracket
3 Low Frequency Instrument Panel Antenna

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
