UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 3

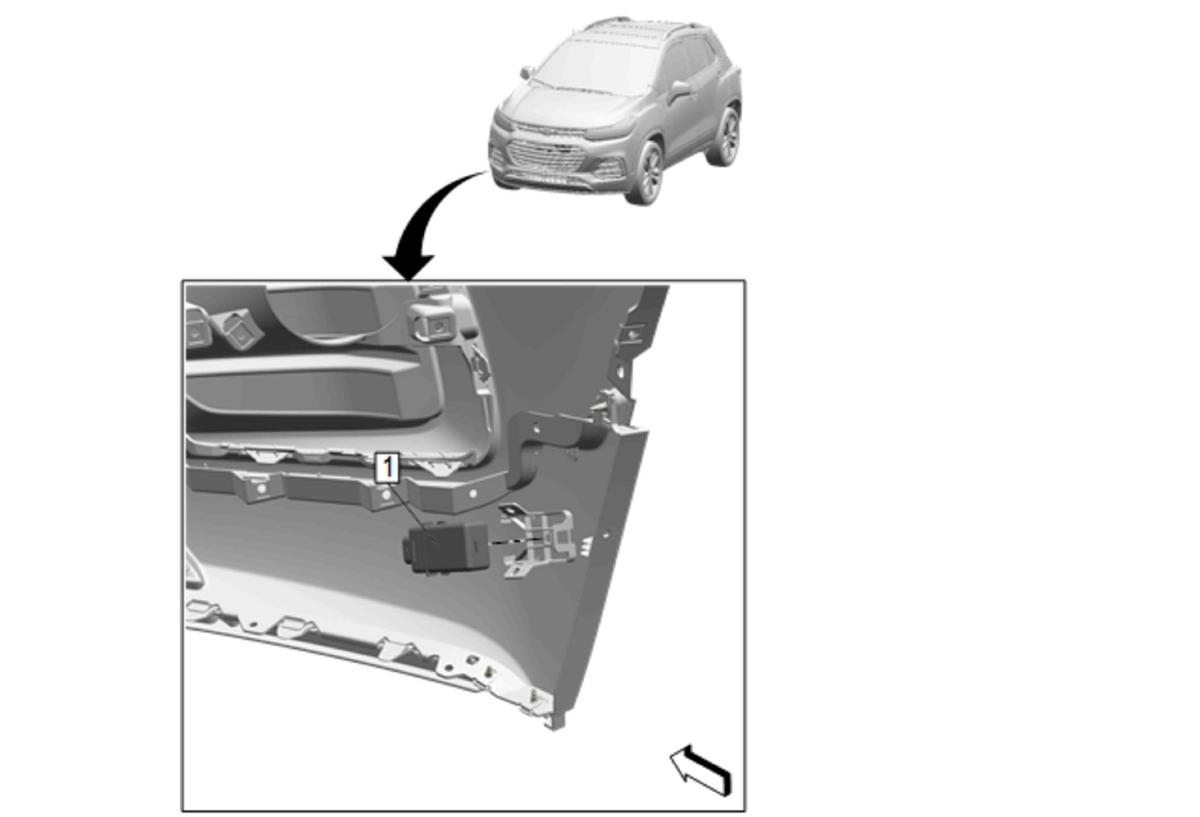

GM5120872Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the right side front wheelhouse liner. Front Wheelhouse Liner Replacement (Trax)Front Wheelhouse Liner Replacement (Encore)
1 UHF Low Energy Remote Control Access Sensor Transceiver - 3

Procedure

  1. Disconnect the electrical connector.
  2. Release the retaining tabs.
