Theft Deterrent Module Replacement (Encore, With BTM)

Courtesy of GENERAL MOTORS COMPANY

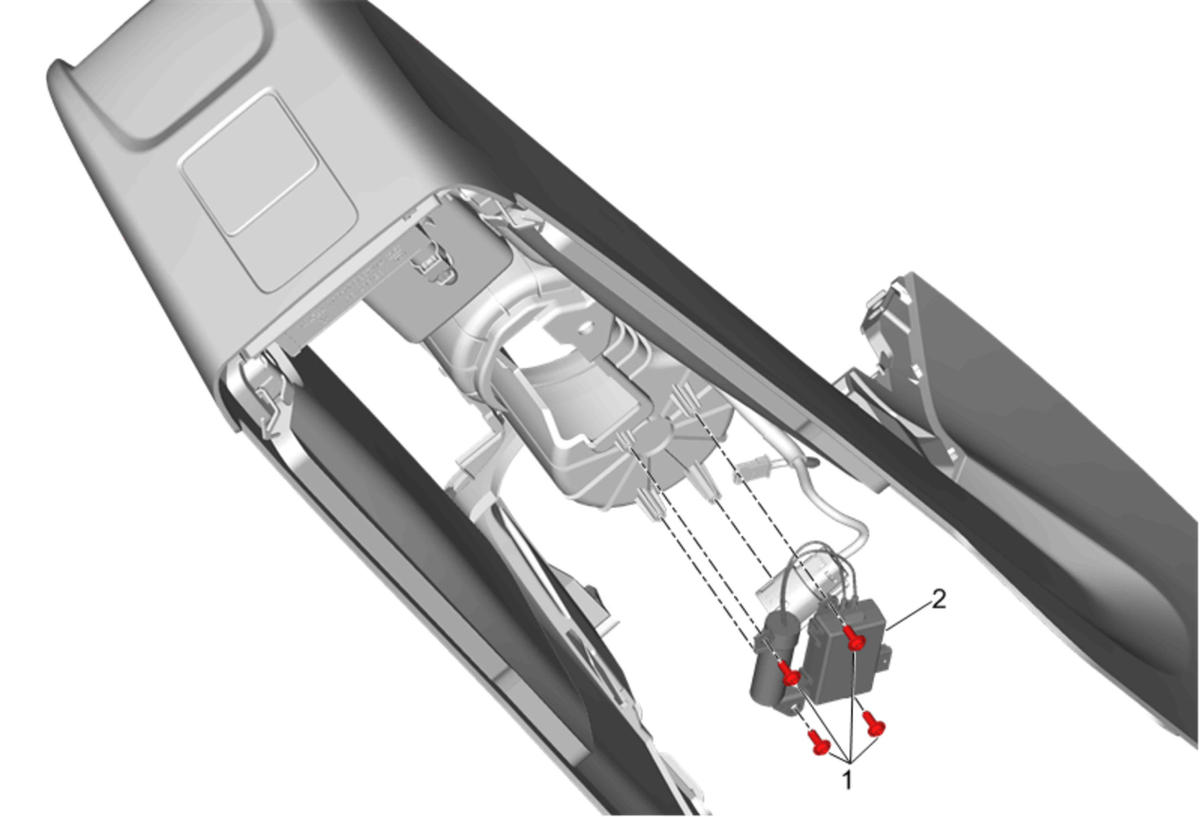

Callout	Component Name
Preliminary Procedure  Front Floor Console Replacement (Encore)
1	Theft Deterrent Module Bolt [4x] CAUTION: Fastener Caution Tighten  1.5 N.m (13 lb in)
2	Theft Deterrent Module Procedure  Disconnect the electrical connector.
