Theft Deterrent Module Replacement (Trax, Without BTM)

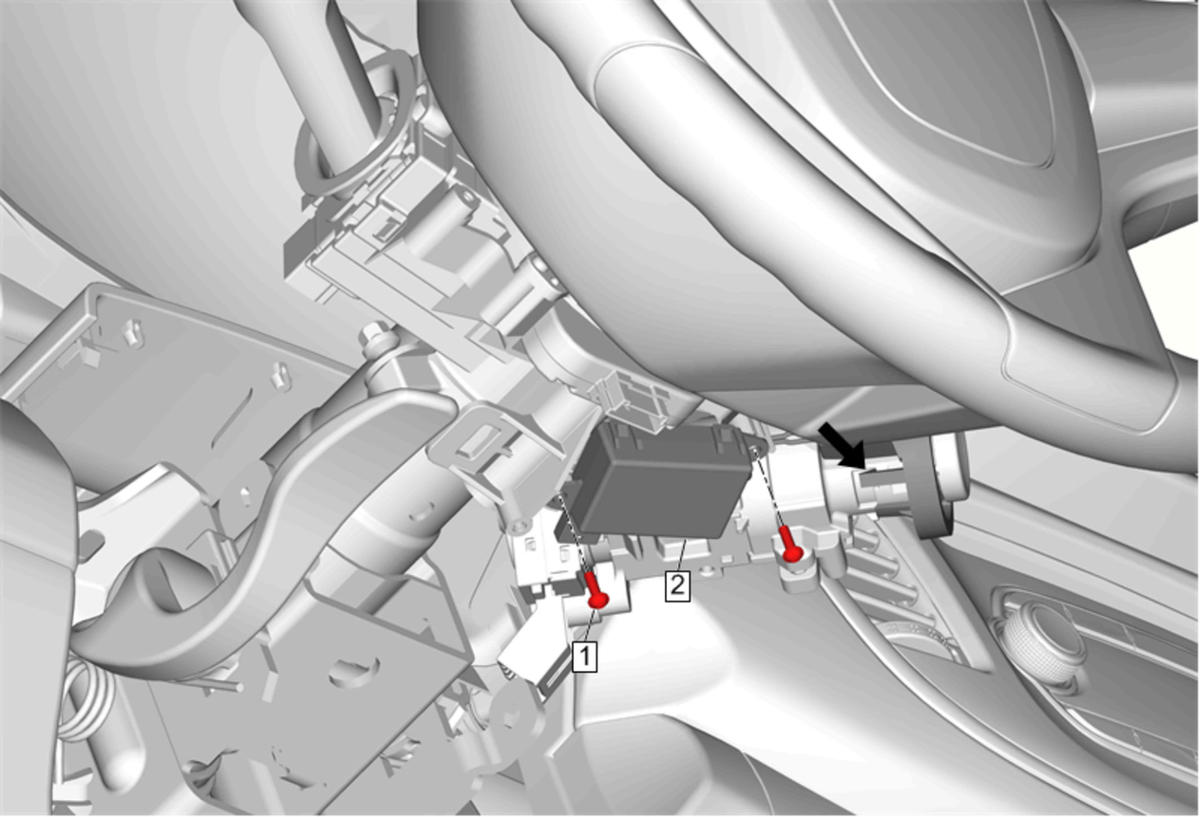

GM4473413

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Reposition the steering column upper trim cover as necessary. Steering Column Upper Trim Cover Replacement (Trax, Without BTM)
Ignition Lock Cylinder Opening Trim Cover Replacement
Steering Column Lower Trim Cover Replacement (Trax, Without BTM)

1

Theft Deterrent Module Bolt [2x]

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Theft Deterrent Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs and remove the theft deterrent module from the ignition and start switch housing.
