Column Lock Module Replacement (Encore)

Courtesy of GENERAL MOTORS COMPANY

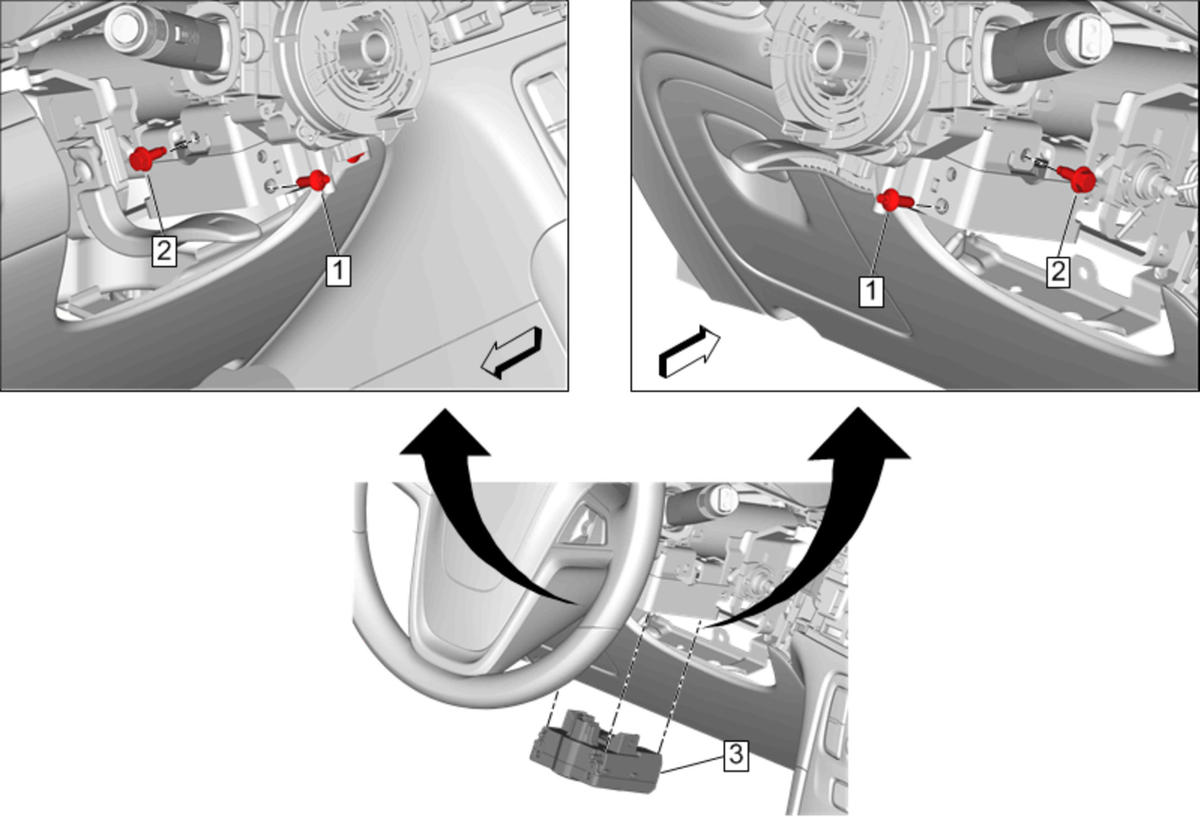

Callout	Component Name
Preliminary Procedure Steering Column Lower Trim Cover Replacement (Encore, With BTM) Ensure the steering wheel and the front wheels are in the straight ahead position. With the vehicle in accessory mode, remove fuse to unlock the steering column lock control module - Column Lock Wiring Schematics (Encore)
1	Steering Column Lock Control Module Bolt- Rear[2x] CAUTION: Refer to Fastener Caution . Tighten 14.5 N.m (11 lb ft)
2	Steering Column Lock Control Module Bolt - Side [2x] Tighten 9 N.m (80 lb in)
3	Steering Column Lock Control Module Procedure Program the steering column lock control module. Control Module References
