Door Lock Switch Replacement - Passenger Front

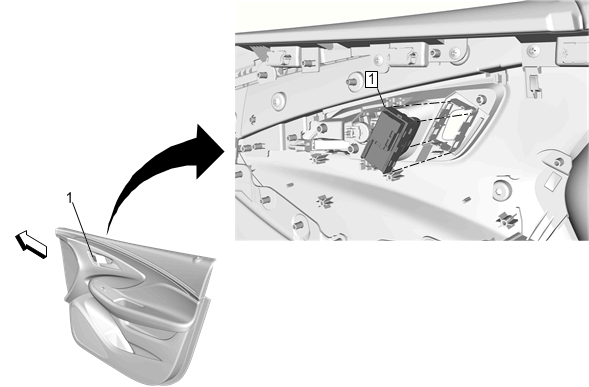

GM3910903Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Trim Replacement
1 Door Lock Switch Passenger Front

Procedure

  1. From the backside of the door trim panel, use a plastic trim tool to gently push in on the side tabs to release the switch from the front side door trim.
  2. Disconnect the electrical connector.
  3. Control Module References for programming and setup information, if required.
