Front Side Door Inside Handle Cable Replacement

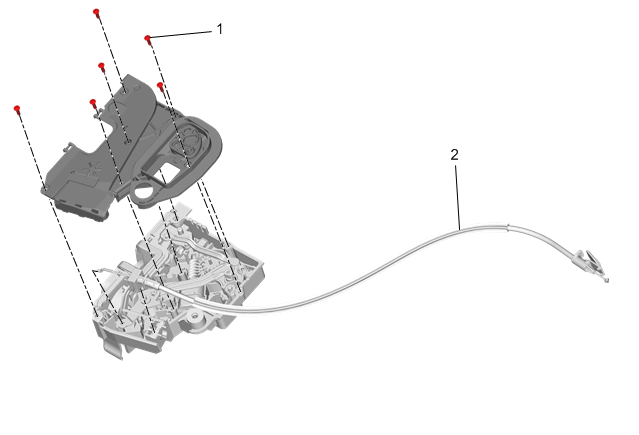

GM3825858Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Side Door Latch Replacement
1 Front Side Door Inside Handle Cable Cover Fastener [6x]
CAUTION:

Refer to Fastener Caution .


Tighten
1.5 N.m (13 lb in)
2 Front Side Door Inside Handle Cable

Procedure

  1. Remove the latch cover from the latch.
  2. Release the cable end from the latch.
