Installation Procedure

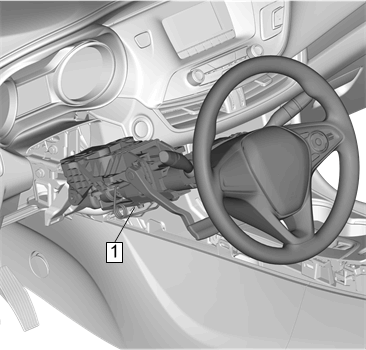

  1. GM3898444Courtesy of GENERAL MOTORS COMPANY

    Position the steering column (1) in the vehicle.

  2. Fig 1: Steering Column Bolts Tightening Sequence
    GM4663837Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Steering Column Nut (1) - Install and hand tighten [4x]

  3. Tighten the steering column nuts (1) in sequence shown to 22 N.m (16 lb ft).
  4. Connect the steering column electrical connectors.
  5. Intermediate Steering Shaft @ Steering Column - Install - Intermediate Steering Shaft Replacement

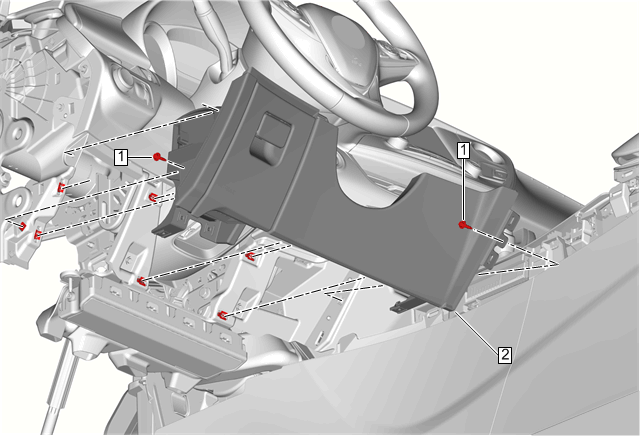

  6. GM3906064Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (2) - Install - Instrument Panel Knee Bolster Replacement

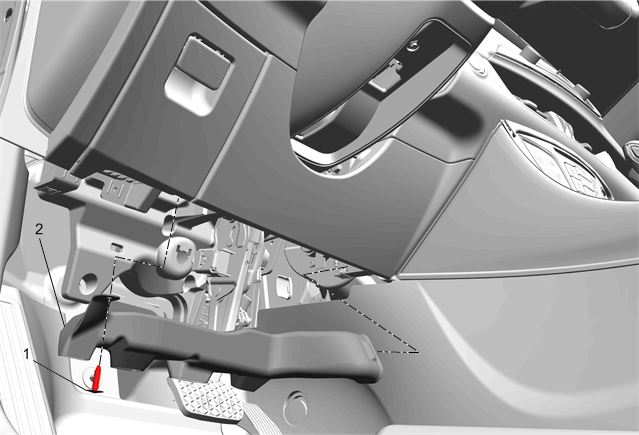

  7. GM3821422Courtesy of GENERAL MOTORS COMPANY

    Floor Front Air Outlet Duct - Left Side (2) - Install - Floor Front Air Outlet Duct Replacement - Left Side

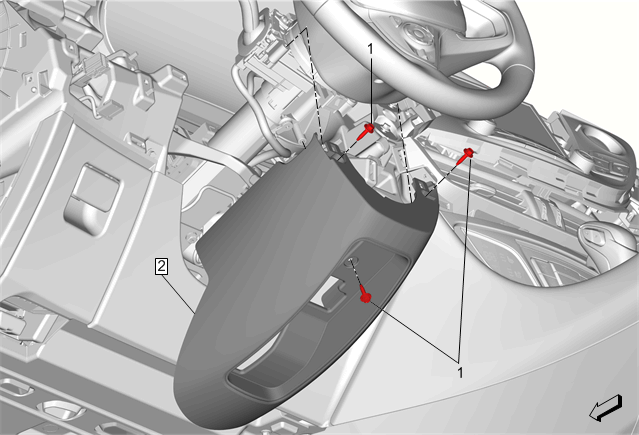

  8. GM3909980Courtesy of GENERAL MOTORS COMPANY

    Steering Column Lower Trim Cover (2) - Install - Steering Column Lower Trim Cover Replacement

  9. GM4622445Courtesy of GENERAL MOTORS COMPANY

    Steering Column Upper Trim Cover (1) - Install - Steering Column Upper Trim Cover Replacement

  10. Program the power steering control module. Control Module References
  11. Center the steering angle sensor. Steering Wheel Angle Sensor Centering
