Turn Signal Switch Replacement
Courtesy of GENERAL MOTORS COMPANY

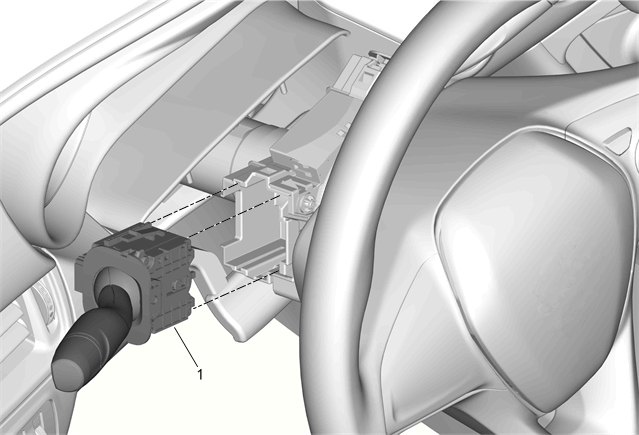

Callout
Component Name
Preliminary Procedures
Steering Column Upper Trim Cover Replacement
Steering Column Lower Trim Cover Replacement
1
Turn Signal Switch
Procedure
Disconnect the electrical connector.
Release the retaining tabs and remove the turn signal switch from the turn signal switch bracket.
