Active Safety Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

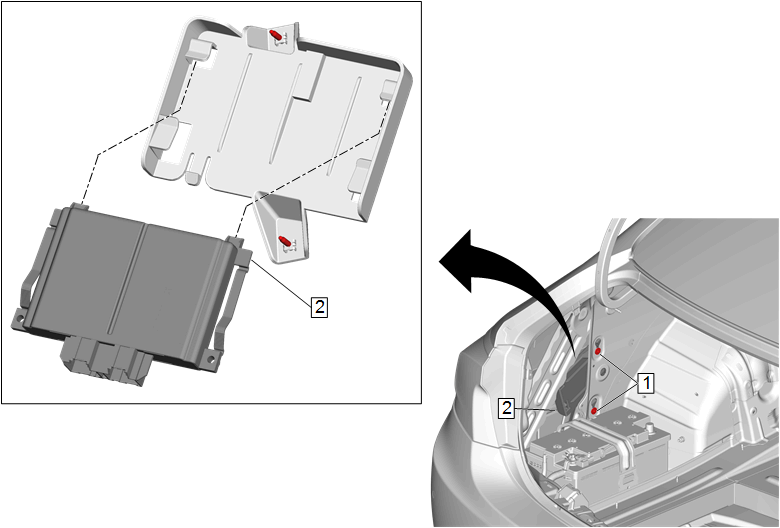

Callout	Component Name
Preliminary Procedure Reposition the rear compartment side trim - left side. Rear Compartment Side Trim Replacement - Left Side (With LHN)Rear Compartment Side Trim Replacement - Left Side (With LGX)
1	Active Safety Control Module Bracket Bolt [2x] CAUTION: Fastener Caution Procedure Loosen the active safety control module bracket retaining bolts and reposition from the interior body panel. Tighten 2.5 N.m (22 lb in)
2	Active Safety Control Module Procedure Release the retaining tabs. Disconnect the electrical connectors. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Active Safety Control Module Bracket Bolt [2x]

CAUTION:

Procedure
Loosen the active safety control module bracket retaining bolts and reposition from the interior body panel.
Tighten
2.5 N.m (22 lb in)

Active Safety Control Module

Procedure

Release the retaining tabs.
Disconnect the electrical connectors.
Perform the necessary programming and setup procedure: Control Module References
