Front Seat Heater Control Module Replacement

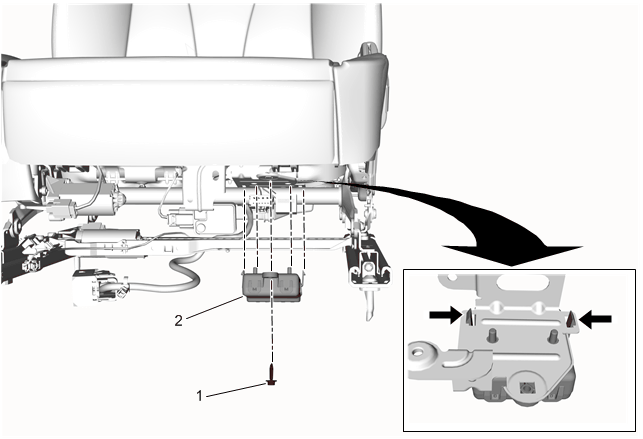

GM4564666Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Heater Control Module Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Seat Heater Control Module
Procedure
Disconnect the electrical connectors.
