Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

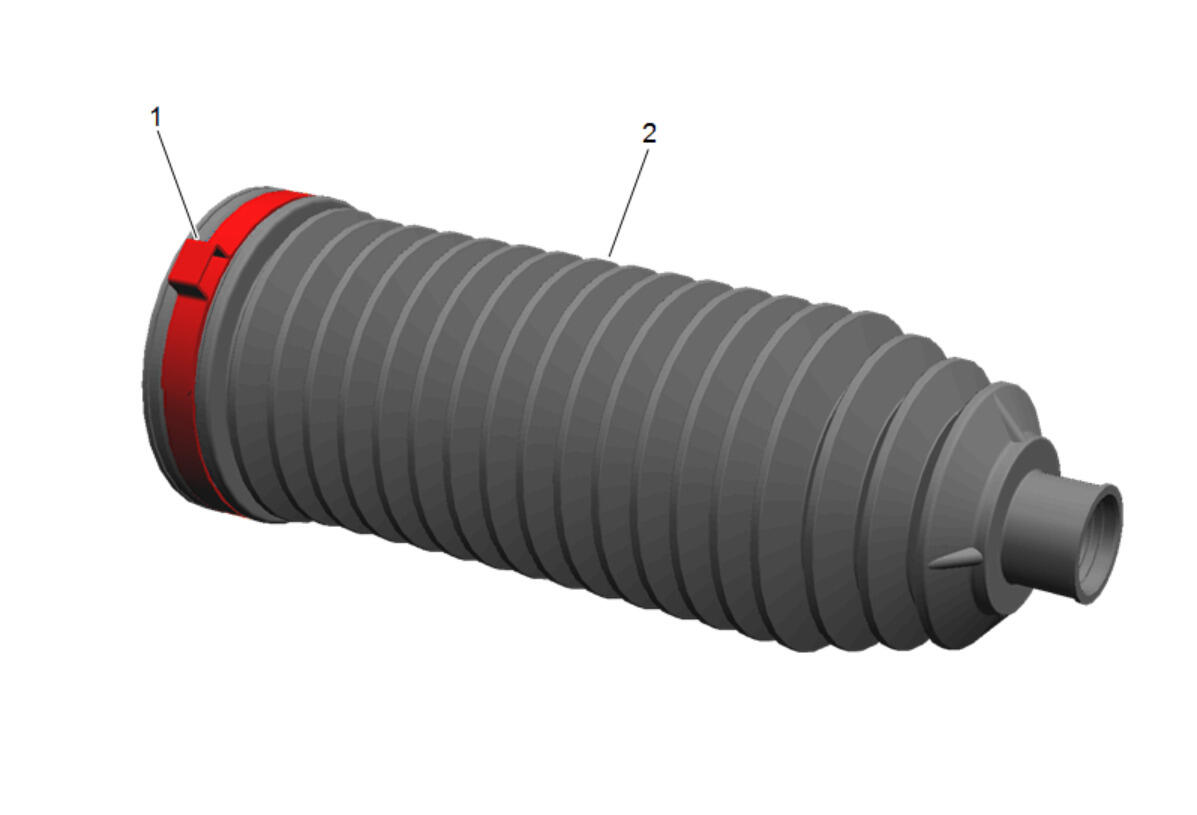

Position a NEW steering gear boot inner clamp (1) on the steering gear boot (2).
Courtesy of GENERAL MOTORS COMPANY

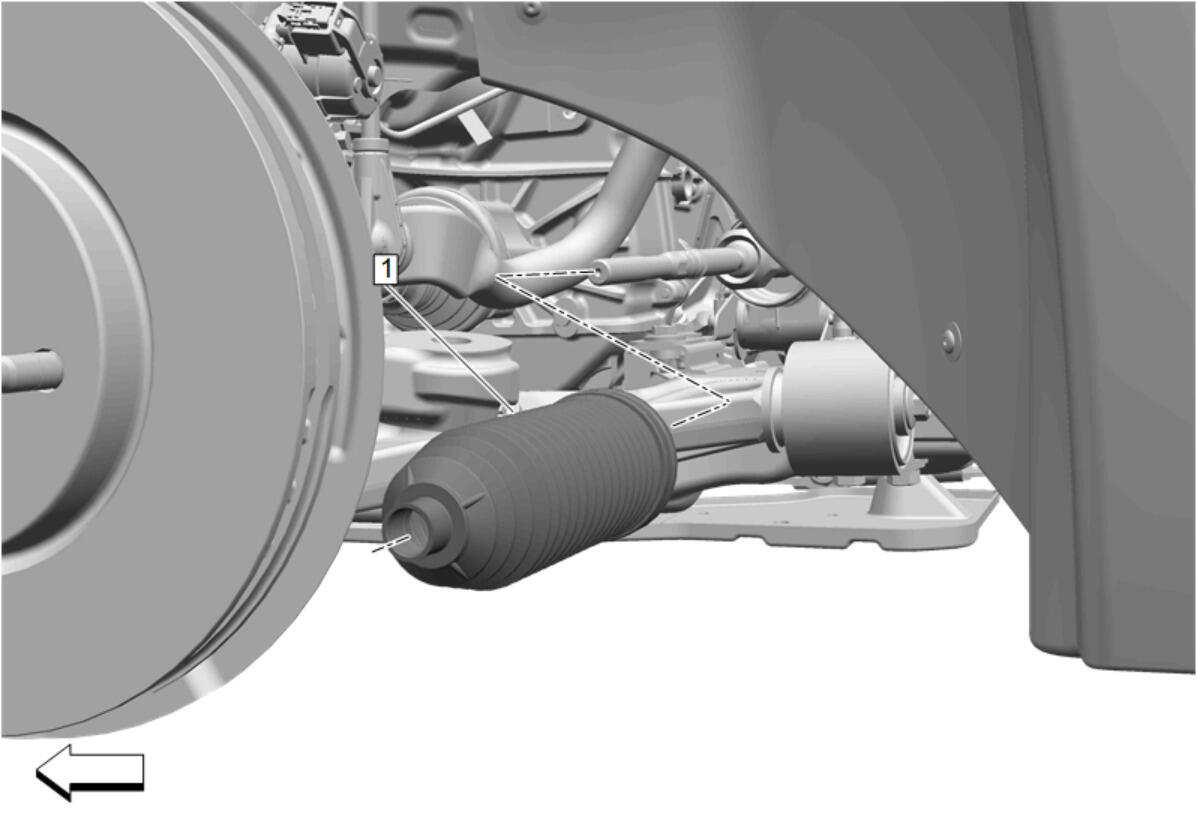

Steering Gear Boot (1) - Install
Courtesy of GENERAL MOTORS COMPANY

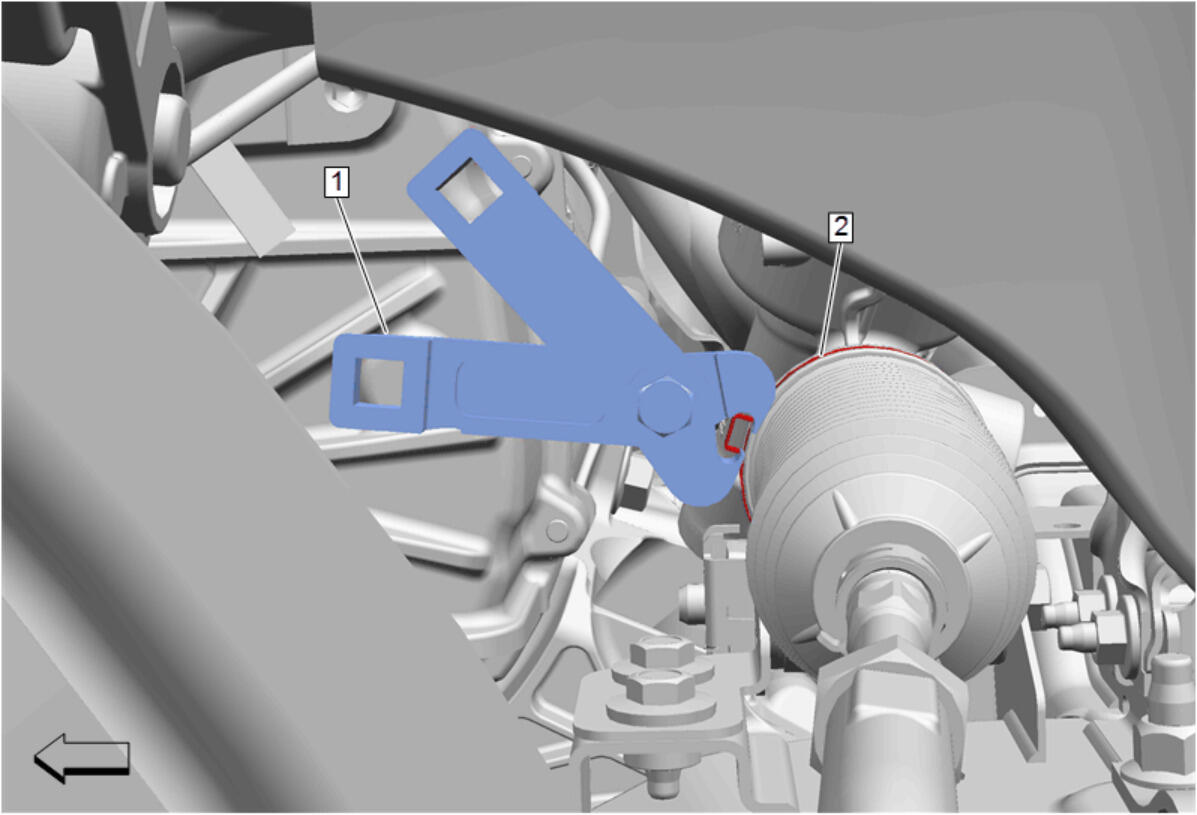

Steering Gear Boot Inner Clamp (2) - Tighten- use DT-35910 Drive Axle Boot Clamp Pliers (1)
Courtesy of GENERAL MOTORS COMPANY

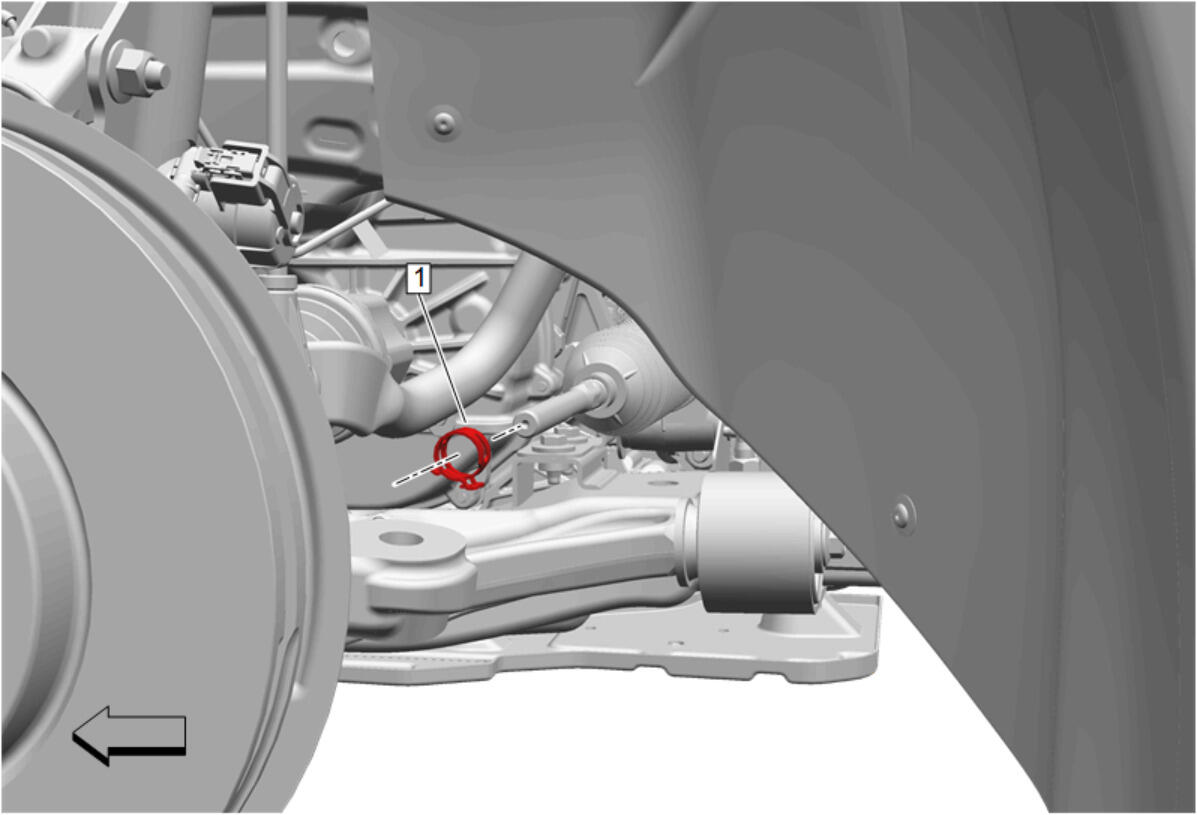

Steering Gear Boot Outer Clamp (1) - Install
Courtesy of GENERAL MOTORS COMPANY

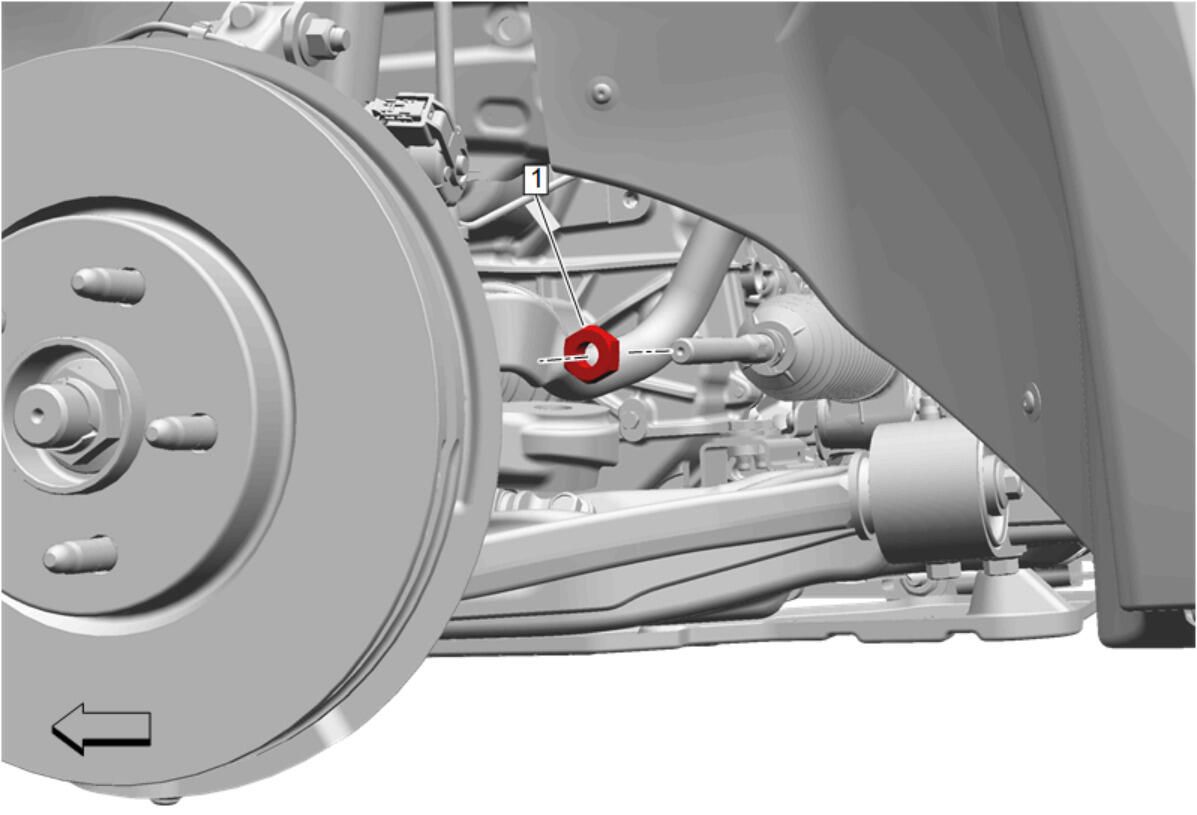

Install the steering linkage inner tie rod nut (1) until aligned with the previously placed matched mark on the steering linkage inner tie rod.
Steering Linkage Outer Tie Rod - Install - Steering Linkage Outer Tie Rod Replacement
Measure and adjust the front toe. Wheel Alignment - Steering Wheel Angle and/or Front Toe Adjustment
