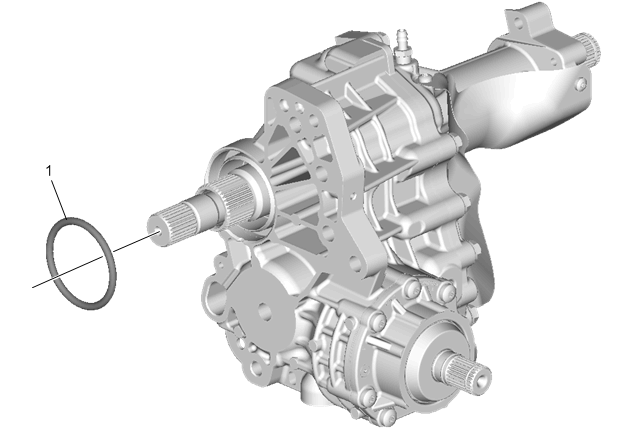

Power Transfer Unit Case Seal View

GM4276951Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Power Transfer Unit Case-to-Transmission Seal
