Human Machine Interface Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

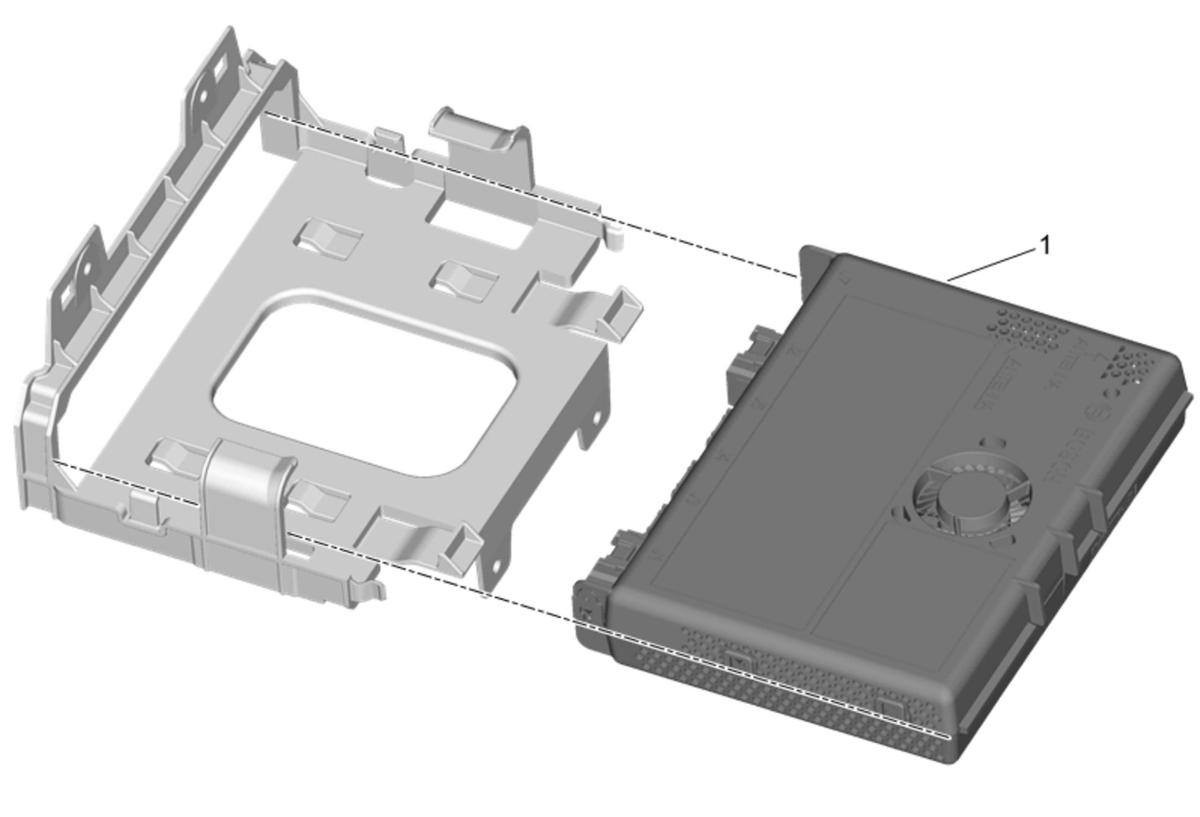

Callout	Component Name
Preliminary Procedure Human Machine Interface Control Module Bracket Replacement
1	Human Machine Interface Control Module Procedure Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References NOTE: The module must be installed with the fan facing upward.

Callout

Component Name

Human Machine Interface Control Module

Procedure

Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References

NOTE:

The module must be installed with the fan facing upward.
