Liftgate Outside Handle Replacement

Courtesy of GENERAL MOTORS COMPANY

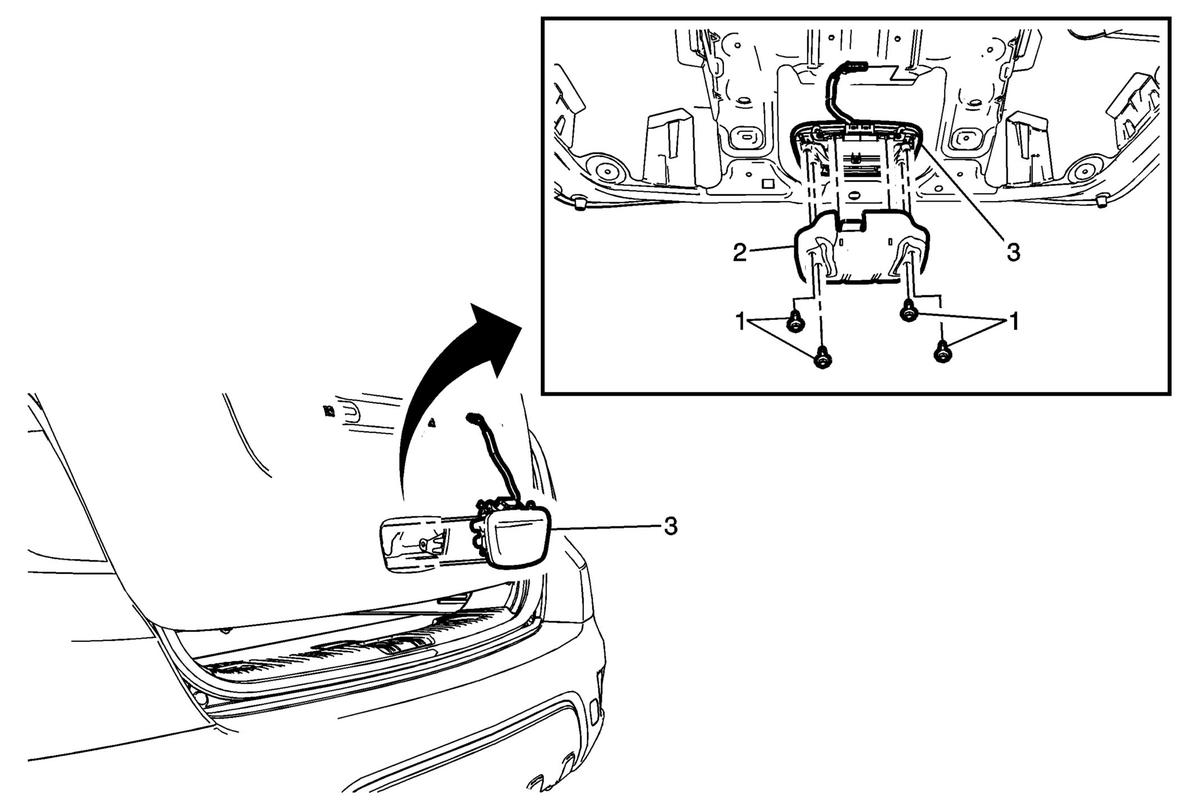

Callout	Component Name
Preliminary Procedure Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement .
1	Liftgate Outside Handle Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Liftgate Outside Handle Seal
3	Liftgate Outside Handle Procedure Support the liftgate outside handle. Disconnect the electrical connector. Remove the liftgate outside handle.
