Rear Side Door Latch Replacement

Courtesy of GENERAL MOTORS COMPANY

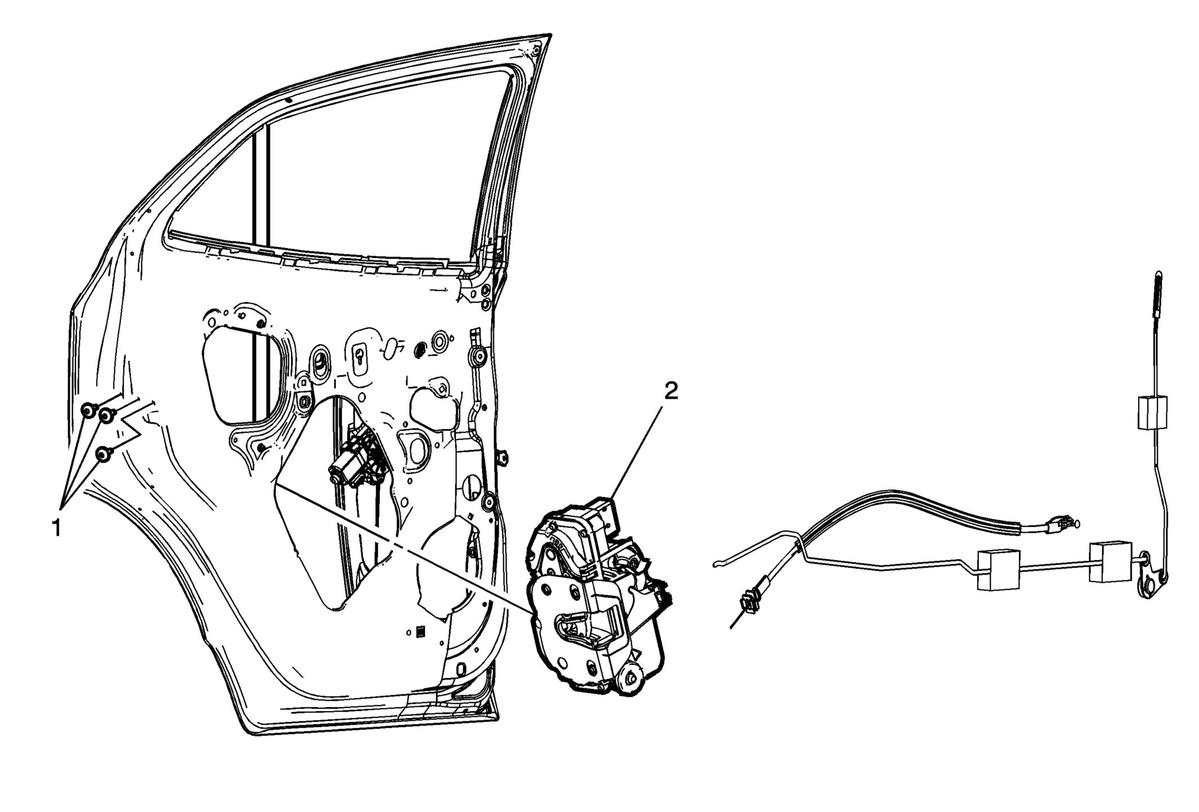

Callout	Component Name
Preliminary Procedure Remove the rear side door window rear guide. Refer to Rear Side Door Window Rear Guide Replacement .
1	Rear Side Door Latch Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Procedures Release the rear inside door handle cable from the retainers. Release the rear outside door handle rod clip so that the handle rod can be free from the door latch assembly Disconnect the rear side door latch electrical connector. Tighten 10 N.m (89 lb in)
2	Rear Side Door Latch Assembly Procedure Transfer the rear side door lock rods. Rear outside door handle rod adjustment. Refer to Rear Side Door Outside Handle Rod Adjustment . NOTE: Inspect the door lock system for proper operation before installing the door trim.

Callout

Component Name

Preliminary Procedure
Remove the rear side door window rear guide. Refer to Rear Side Door Window Rear Guide Replacement .

Rear Side Door Latch Screw (Qty: 3)

CAUTION:

Procedures

Release the rear inside door handle cable from the retainers.
Release the rear outside door handle rod clip so that the handle rod can be free from the door latch assembly
Disconnect the rear side door latch electrical connector.

Tighten
10 N.m (89 lb in)

Rear Side Door Latch Assembly

Procedure

Transfer the rear side door lock rods.
Rear outside door handle rod adjustment. Refer to Rear Side Door Outside Handle Rod Adjustment .

NOTE:

Inspect the door lock system for proper operation before installing the door trim.
