Outside Rearview Mirror Remote Control Switch Replacement (Buick)

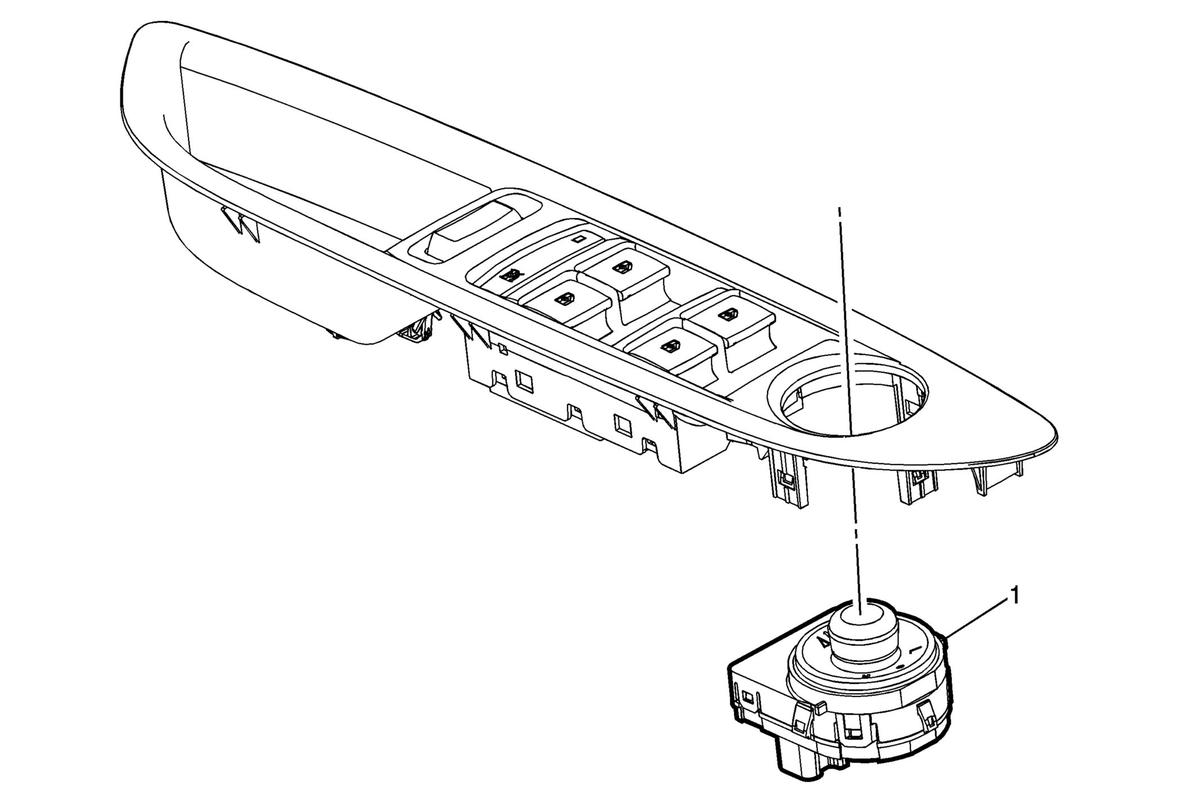

GM2784332

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Remove the front side door armrest switch mount plate - drivers side door. Refer to Front Side Door Armrest Switch Mount Plate Replacement (Driver Side Door, Buick) , Front Side Door Armrest Switch Mount Plate Replacement (Passenger Side Door, Buick) .

1

Outside Remote Control Rearview Mirror Switch Assembly

Procedure

Release tabs on switch to remove from the front side door accessory switch mount plate.
Refer to Control Module References for programming and set up procedures.
