Outside Rearview Mirror Replacement

Courtesy of GENERAL MOTORS COMPANY

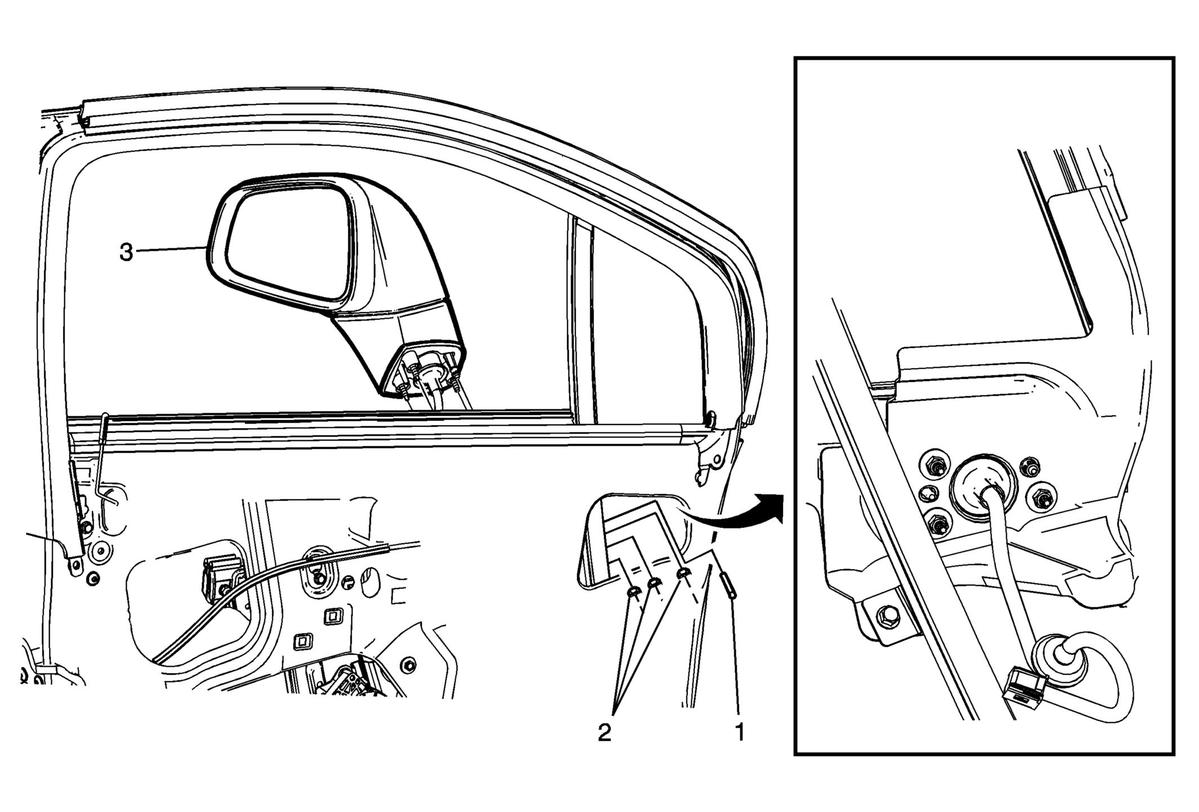

Callout	Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning . Preliminary Procedure Remove the front side door trim. Refer to Front Side Door Trim Replacement (Buick) , and Front Side Door Trim Replacement (Chevrolet) .
1	Outside Rearview Mirror Locator NOTE: When install the outside rearview mirror align the locator pin to the door hole.
2	Outside Rearview Mirror Nuts (Qty: 3) CAUTION: Refer to Fastener Caution . Procedure Remove the water deflector to access the nuts. Disconnect the electrical connector. Tighten 9 N.m (80 lb in)
3	Outside Rearview Mirror Procedure Inspect the outside mirror for proper operation before installing the door trim.
