Installation Procedure

NOTE:

It may be necessary to transfer the bracket cable retainers from the old handle bracket.

Transfer components as necessary.
Front Side Door Lock Cylinder Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Ensure that the counter balance is reset and locked in the detent of the handle bracket. The counter balance can't Not be reset after the latch and handle bracket has been reinstalled in the door.

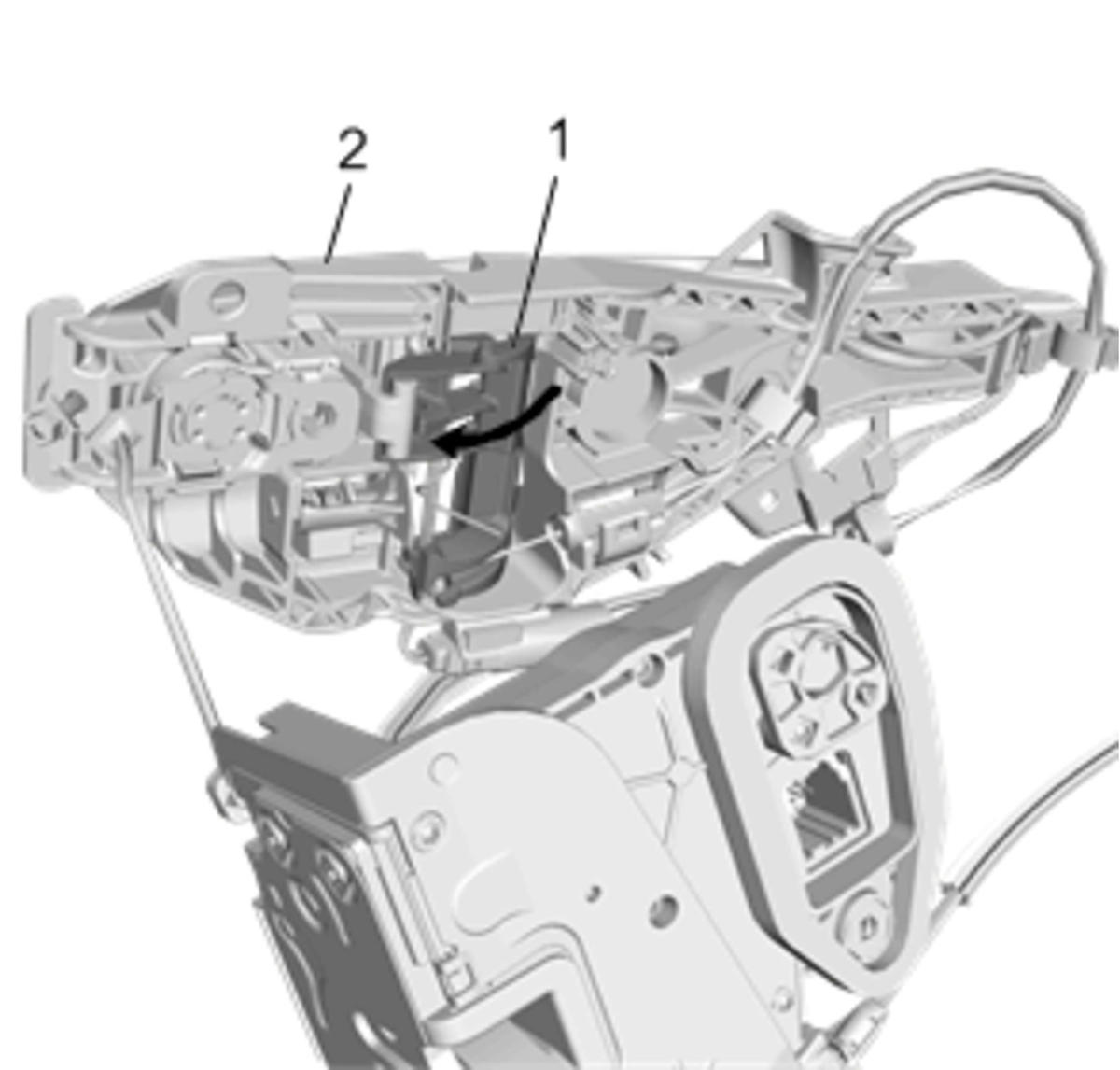

Reset the front side door outside handle bracket counter balance (1) as follows:
1. The outside door handle can Not be installed until the counter balance (1) is reset.
2. Grasp the front side door outside handle bracket (2) with one hand.
3. From the back side of the counter balance (1), push forward on the counter balance until it locks into the detent of the handle bracket (2).
Front Side Door Lock Cylinder Rod @ Front Side Door Lock Cylinder - Install - Front Side Door Lock Cylinder Rod Replacement
Front Side Door Outside Handle Cable @ Front Side Door Outside Handle Bracket - Install - Front Side Door Outside Handle Cable Replacement
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Bracket should be slid full rearward prior to tightening bracket fastener.

Front Side Door Outside Handle Bracket and Front Side Door Latch Assembly - Install - Front Side Door Latch Replacement
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Front Side Door Outside Handle Bracket Fastener (1) - Install 4.7 N.m (42 lb in)
Front Side Door Outside Handle Replacement
Ensure that the door lock system operates properly before installing the trim.
