Liftgate Close Switch Replacement
| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Trim Finish Panel Pull Cup Replacement (TB4) , and Liftgate Trim Finish Panel Pull Cup Replacement (TC2) |
|

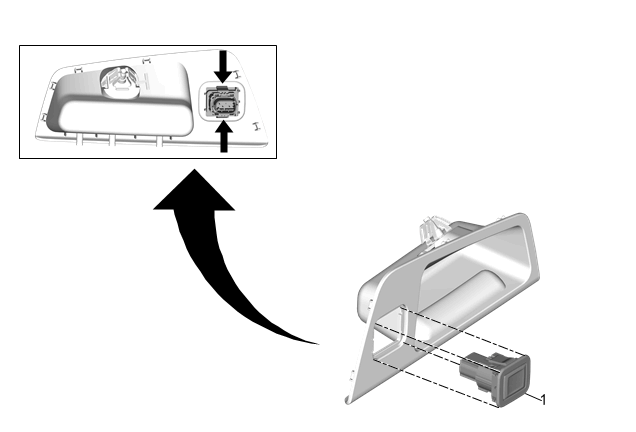

| 1 | Liftgate Close Switch Procedure From the backside of the liftgate trim finish panel pull cup, use a plastic trim tool to gently push in on the tabs to release the switch. |
