Liftgate Latch Replacement

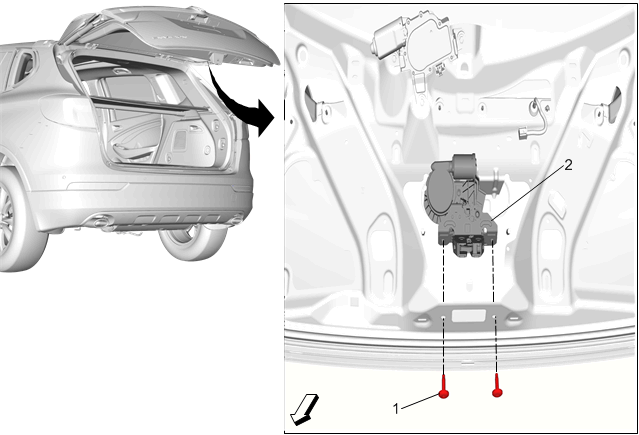

| Callout | Component Name |
|---|---|
| Preliminary Procedure Liftgate Lower Trim Finish Panel Replacement |
|
| 1 | Liftgate Latch Bolt [2x]
CAUTION:
Refer to Fastener Caution . Tighten 22 N.m (16 lb ft) |
| 2 | Liftgate Latch Procedure Disconnect the electrical connector. |
