Liftgate Side Sensor Replacement
Courtesy of GENERAL MOTORS COMPANY

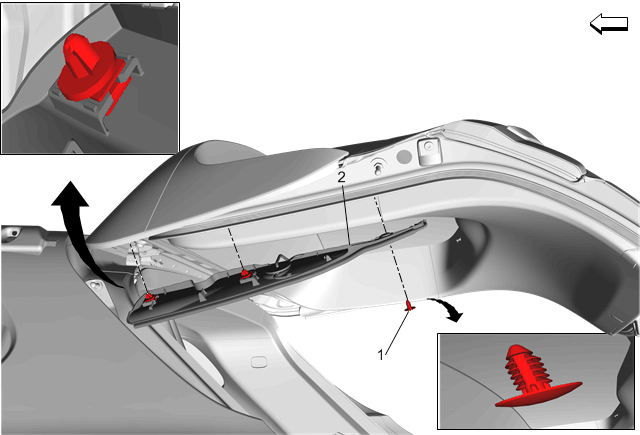

Callout
Component Name
1
Liftgate Side Sensor Retainer
2
Liftgate Side Sensor
Procedure
Using a trim type tool release the 2 remaining retainers.
Disconnect the electrical connector.
