Rear Closure Hands Free Sensor Replacement

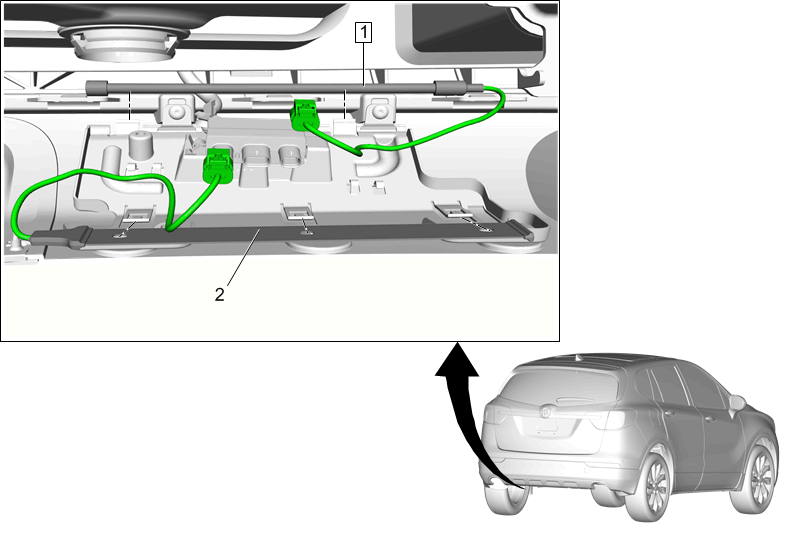

GM4444763

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedure
Lifting and Jacking the Vehicle

1

Rear Closure Hands Free Sensor - Upper

Procedure

Disconnect the electrical connector.
Disengage opposite end from the electrical connector, then pull back on each tab, and apply slight force on sensor to push the sensor out of the two tabs and remove.

2

Rear Closure Hands Free Sensor - Lower

Procedure

Disconnect the electrical connector.
Lift up each tab while pulling the sensor from each tab.
