Driver Seat Adjuster Memory Module Replacement

Courtesy of GENERAL MOTORS COMPANY

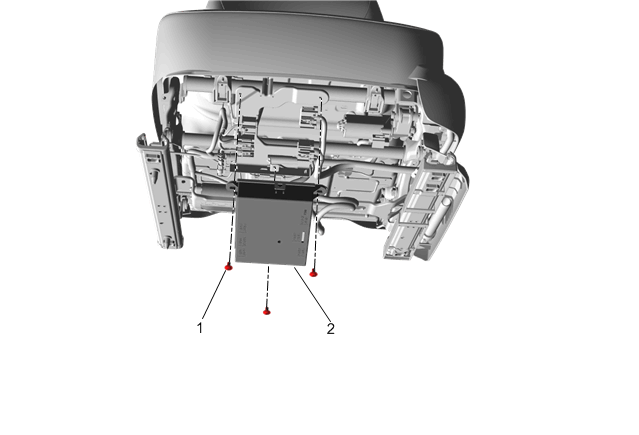

Callout	Component Name
Preliminary Procedure Raise the seat to the highest position.
1	Driver Seat Adjuster Memory Module Fastener [3x] CAUTION: Refer to Fastener Caution . Tighten 4.5 N.m (40 lb in)
2	Driver Seat Adjuster Memory Module Procedure Disconnect all electrical connectors. Remove the module from the adjuster memory and wiring harness bracket. Control Module References for programing and setup information, if required.

Callout

Component Name

Preliminary Procedure
Raise the seat to the highest position.

Driver Seat Adjuster Memory Module Fastener [3x]

CAUTION:

Tighten
4.5 N.m (40 lb in)

Driver Seat Adjuster Memory Module

Procedure
