Front Seat Vent Fan Control Module Replacement

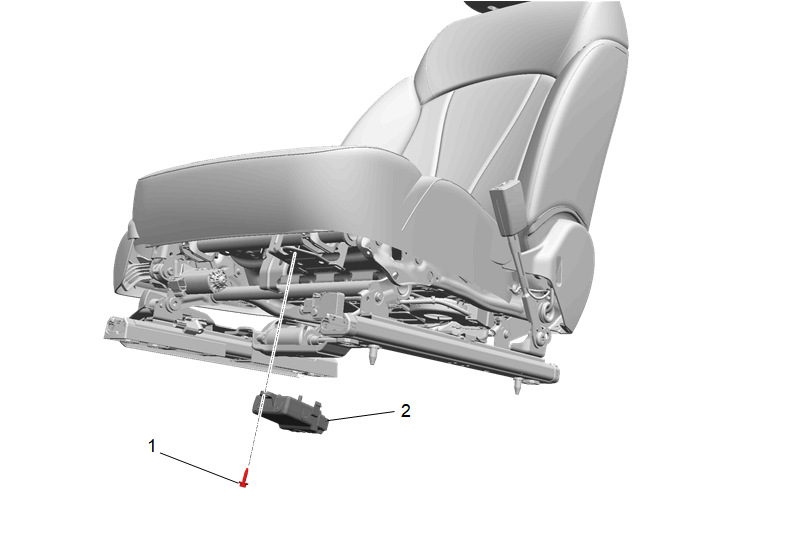

GM5246124Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Seat Vent Fan Control Module Screw
CAUTION:

Refer to Fastener Caution .


Procedure
Adjust the seat to its highest position.
Tighten
4.5 N.m (40 lb in)
2 Front Seat Vent Fan Control Module
Procedure
Disconnect all electrical connectors.
