Active Safety Control Module Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Left Side (5-Door Wagon 35) , or Rear Compartment Side Trim Replacement - Left Side (Hatchback) - Reposition

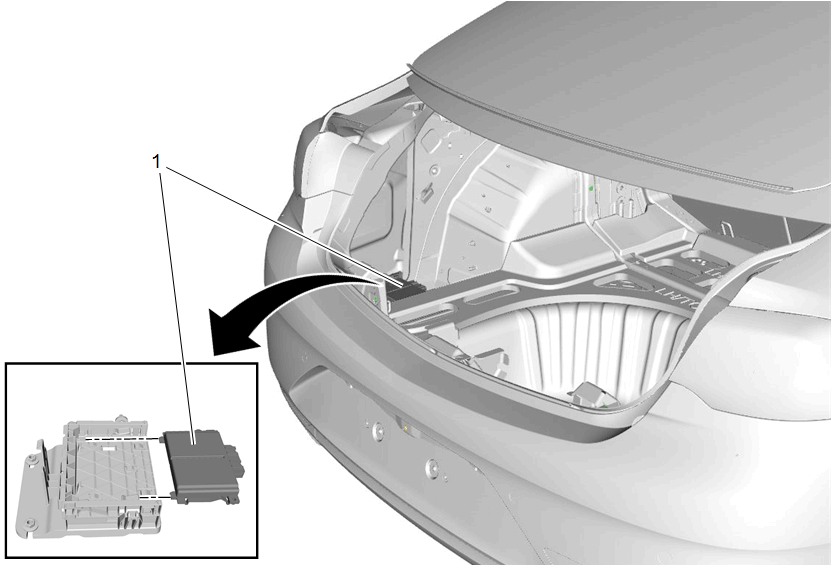

1	Active Safety Control Module Procedure Disconnect the electrical connectors. Release the locking retainer from the active safety control module bracket. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

Preliminary Procedure
Rear Compartment Side Trim Replacement - Left Side (5-Door Wagon 35) , or Rear Compartment Side Trim Replacement - Left Side (Hatchback) - Reposition

Active Safety Control Module

Procedure

Disconnect the electrical connectors.
Release the locking retainer from the active safety control module bracket.
Perform the necessary programming and setup procedure: Control Module References
