Forward Range Radar Sensor Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

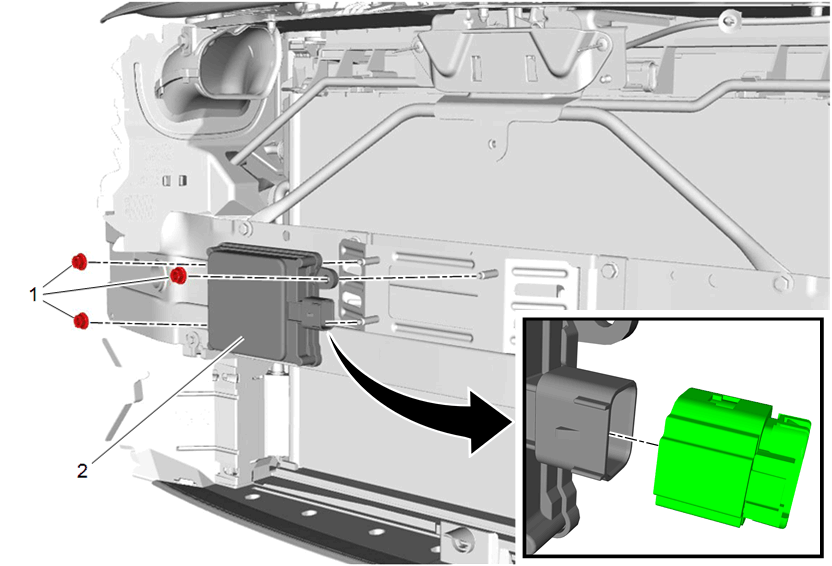

Callout	Component Name
Preliminary Procedure Front Bumper Fascia Replacement .
1	Forward Range Radar Sensor Nut [3x] CAUTION: Fastener Caution Tighten 9 N.m (80 lb in)
2	Forward Range Radar Sensor CAUTION: Do NOT apply paint to the Forward Range Radar Module. Always cover the module before applying paint or other coatings in the area around the module. Failure to protect the module may result in reduced functionality of the module. Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Front Bumper Fascia Replacement .

Forward Range Radar Sensor Nut [3x]

CAUTION:

Fastener Caution

Tighten
9 N.m (80 lb in)

Forward Range Radar Sensor

CAUTION:

Do NOT apply paint to the Forward Range Radar Module. Always cover the module before applying paint or other coatings in the area around the module. Failure to protect the module may result in reduced functionality of the module.

Procedure

Disconnect the electrical connector.
Control Module References for programming and setup information, if required.
