Front View Camera Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement
1	Front View Camera Procedure Gently depress top center tabs on bracket to release camera. Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement

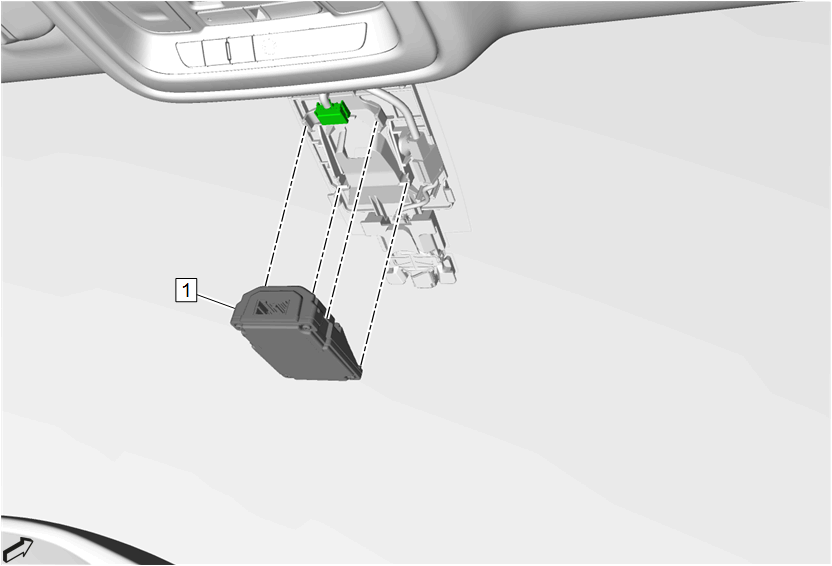

Front View Camera

Procedure

Gently depress top center tabs on bracket to release camera.
Disconnect the electrical connector.
Control Module References for programming and setup information, if required.
