Parking Assist Control Module Replacement

WARNING: This page is about a different car, the 2020 Buick Regal TourX, 2020 Buick Regal, 2019 Buick Regal TourX, and 2019 Buick Regal. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

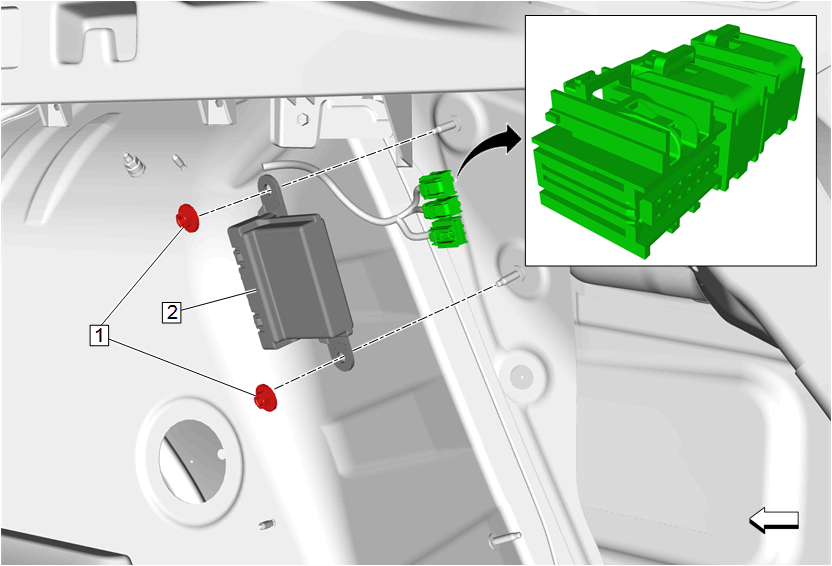

Callout	Component Name
Preliminary Procedure Rear Compartment Side Trim Replacement - Right Side (Hatchback)Rear Compartment Side Trim Replacement - Right Side (5-Door Wagon 35)
1	Parking Assist Control Module Nut [2x] CAUTION: Fastener Caution Tighten 5 N.m (44 lb in)
2	Parking Assist Control Module Procedure Disconnect the electrical connector. Control Module References for programming and setup information, if required.

Callout

Component Name

Preliminary Procedure
Rear Compartment Side Trim Replacement - Right Side (Hatchback)Rear Compartment Side Trim Replacement - Right Side (5-Door Wagon 35)

Parking Assist Control Module Nut [2x]

CAUTION:

Fastener Caution

Tighten
5 N.m (44 lb in)

Parking Assist Control Module

Procedure

Disconnect the electrical connector.
Control Module References for programming and setup information, if required.
