Electronic Suspension Control Module Bracket Replacement

Courtesy of GENERAL MOTORS COMPANY

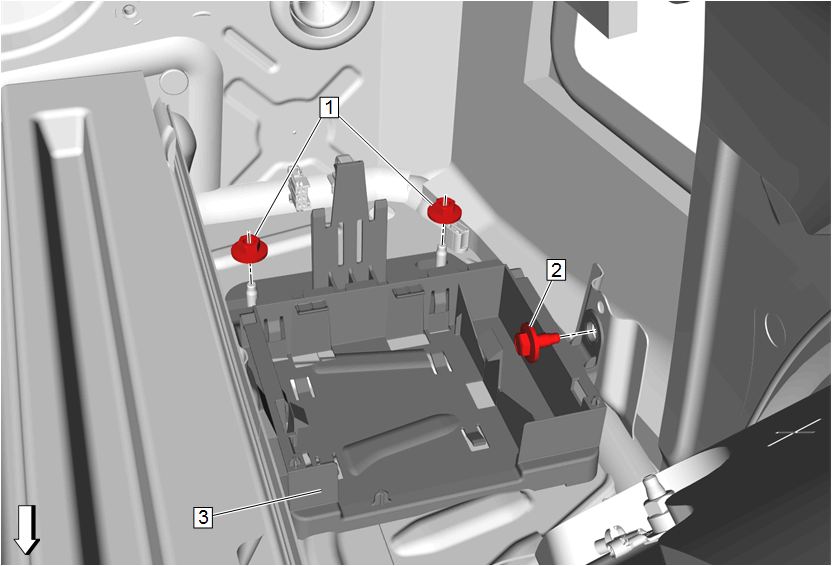

Callout	Component Name
Preliminary Procedure  Electronic Suspension Control Module - Remove - Electronic Suspension Control Module Replacement
1	Electronic Suspension Control Module Bracket Nut [2x] CAUTION: Fastener Caution Tighten  22 N.m (16 lb ft)
2	Electronic Suspension Control Module Bracket Bolt Tighten  22 N.m (16 lb ft)
3	Electronic Suspension Control Module Bracket
