Removal Procedure
- Active Safety Control Module @ Left Side - Remove - Active Safety Control Module Replacement

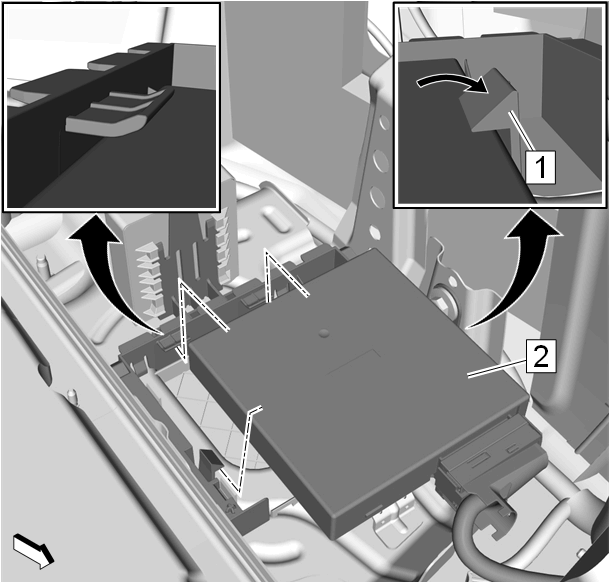

Remove the electronic suspension control module (2) by releasing the tab as indicated on the electronic suspension control module bracket (1).

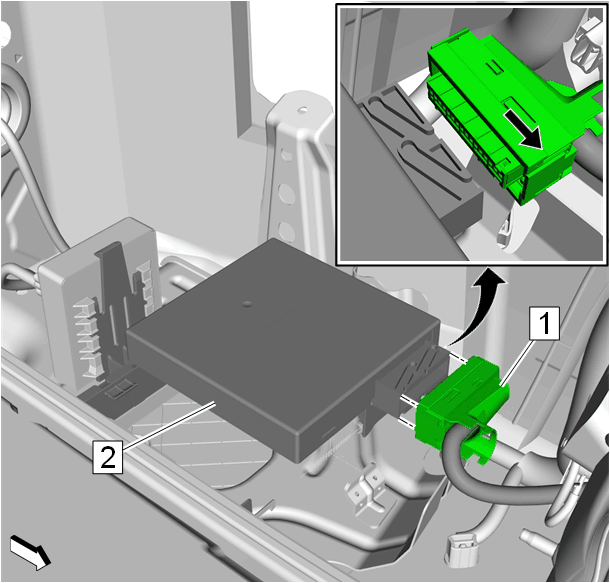

Electrical Connector (1) @ Electronic Suspension Control Module (2) - Disconnect
- Electronic Suspension Control Module (2) - Remove
