Suspension Control Module Replacement

Courtesy of GENERAL MOTORS COMPANY

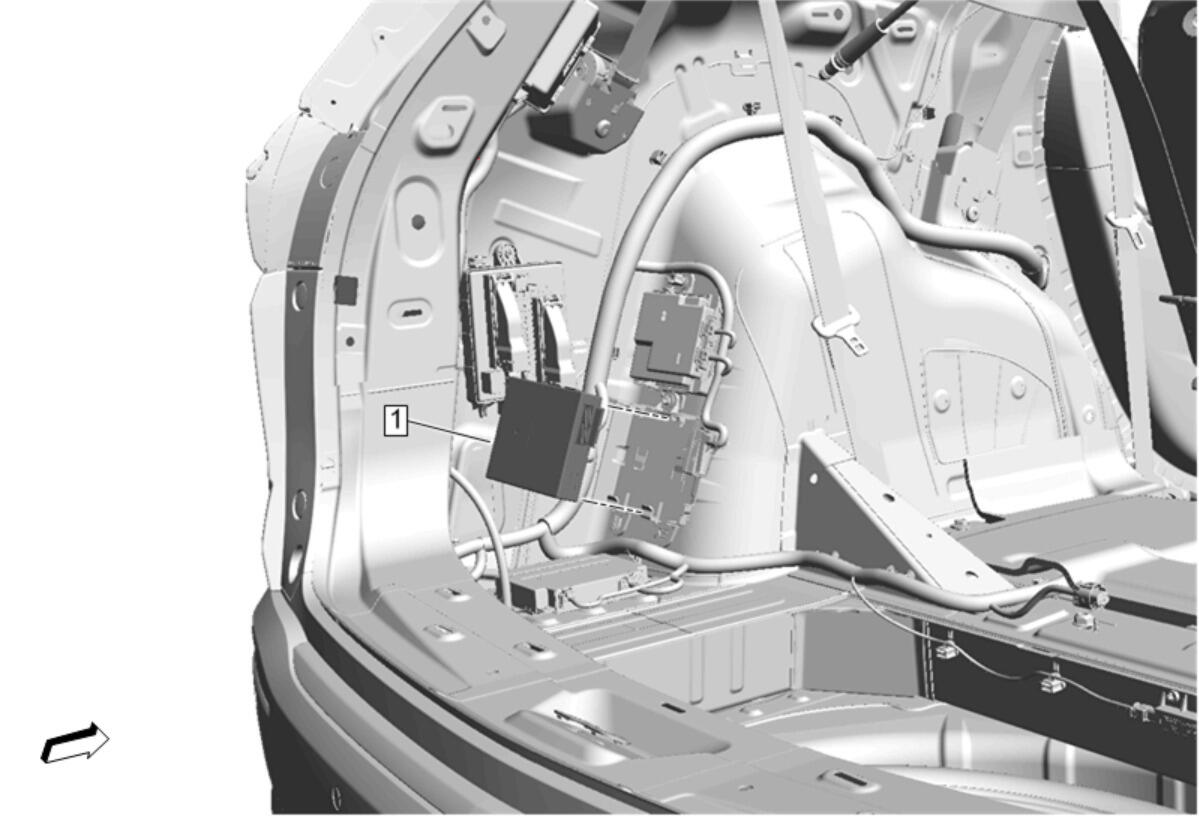

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Right Side) , or Quarter Lower Rear Trim Panel Replacement (Left Side)
1	Electronic Suspension Control Module Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References Clear DTCs

Callout

Component Name

Electronic Suspension Control Module

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
Clear DTCs
