Low Frequency Console Antenna Replacement

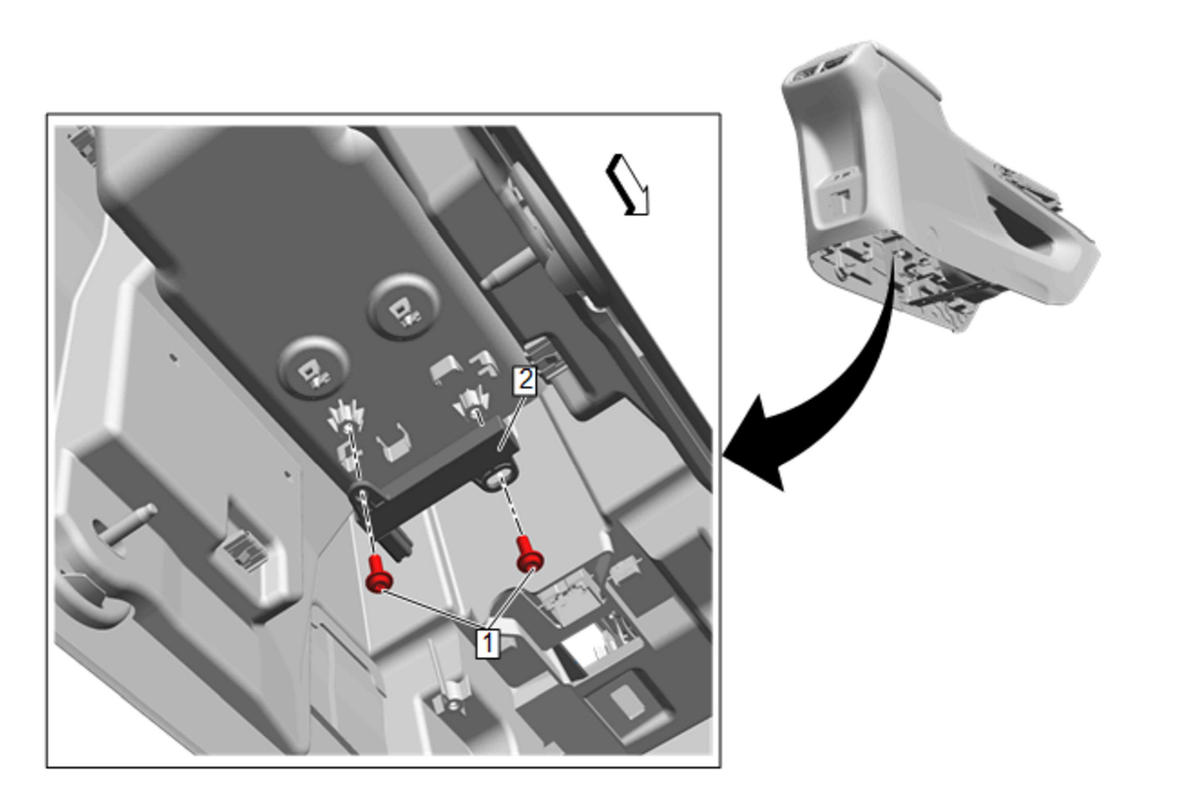

GM5593821Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Front Floor Console Replacement
1 Low Frequency Console Antenna Bolt [2x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Low Frequency Console Antenna
