Front View Camera Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal. Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UHX)

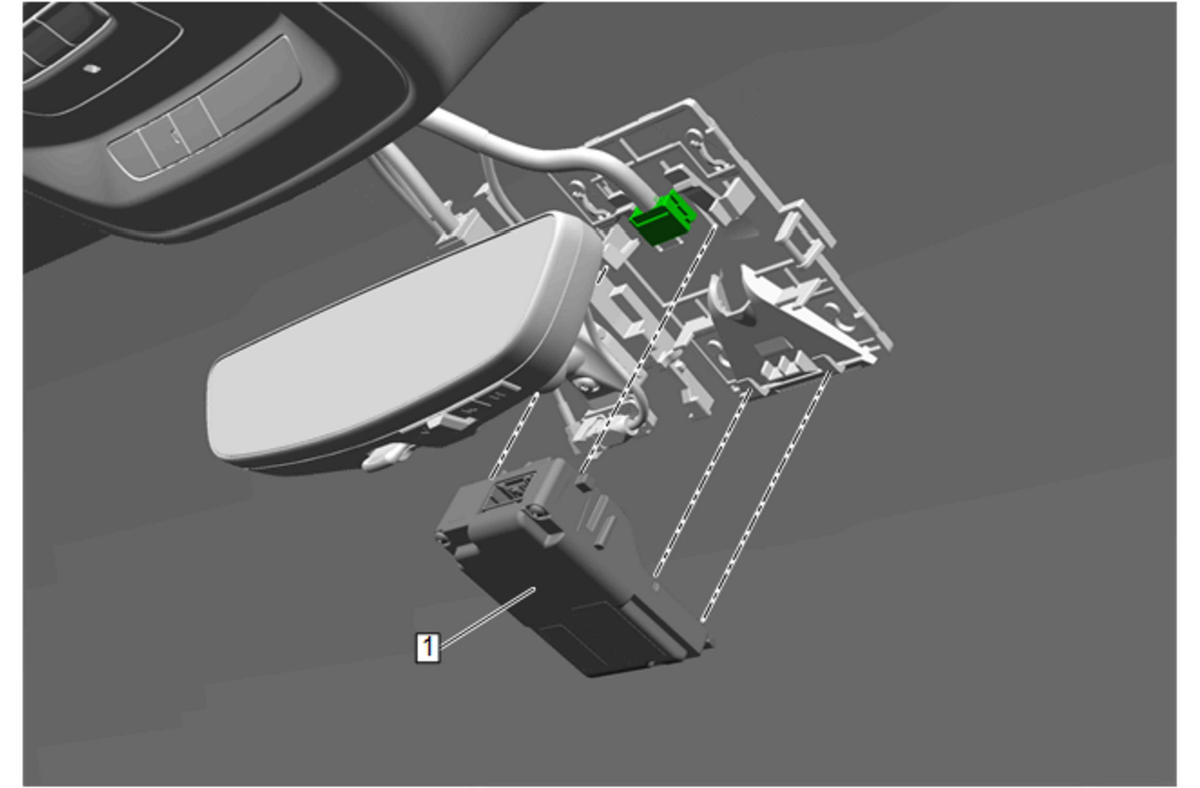

1	Front View Camera Procedure Disconnect the electrical connector. Release the retaining tabs. Perform the necessary programming and setup procedure: Control Module References

Callout

Component Name

WARNING:

While operating, electrical control modules can produce heat and become hotter than their surroundings. To prevent burns allow sufficient time for the module to cool before removal.

Preliminary Procedure Windshield Multifunction Sensor Mount Bracket Cover Replacement (without UHX) , or Windshield Multifunction Sensor Mount Bracket Cover Replacement (with UHX)

Front View Camera

Procedure

Disconnect the electrical connector.
Release the retaining tabs.
Perform the necessary programming and setup procedure: Control Module References
