Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

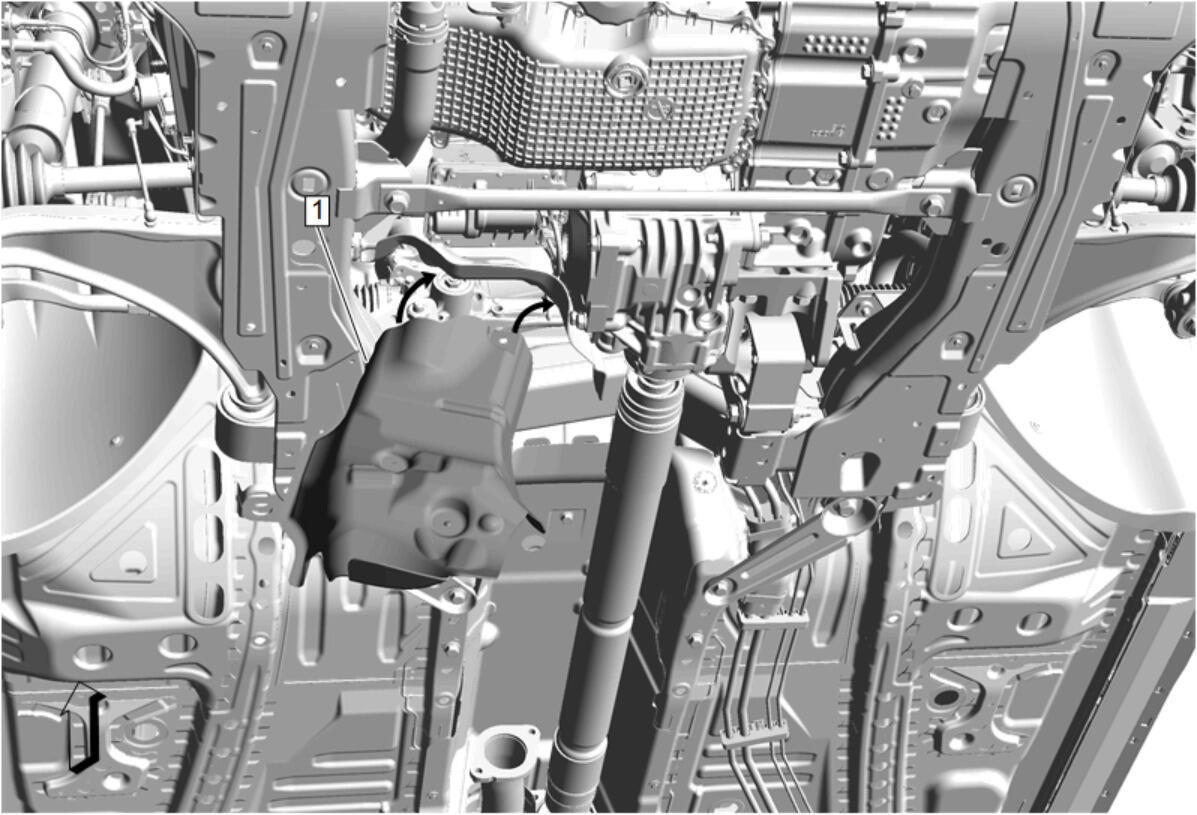

Steering Gear Heat Shield (1) - Install
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Some components not shown for graphic clarity.

CAUTION:
Fastener Caution .

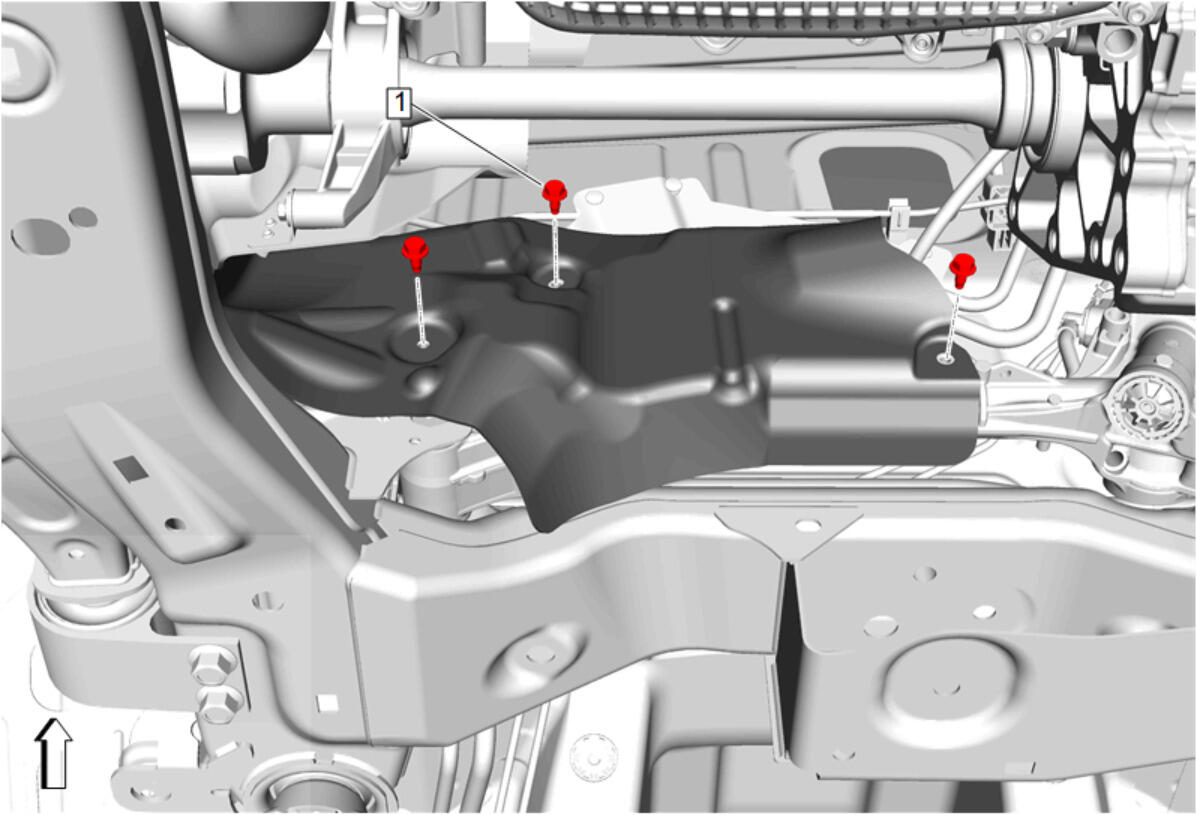

Steering Gear Heat Shield Bolt (1) - Install and tighten [3x] 9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

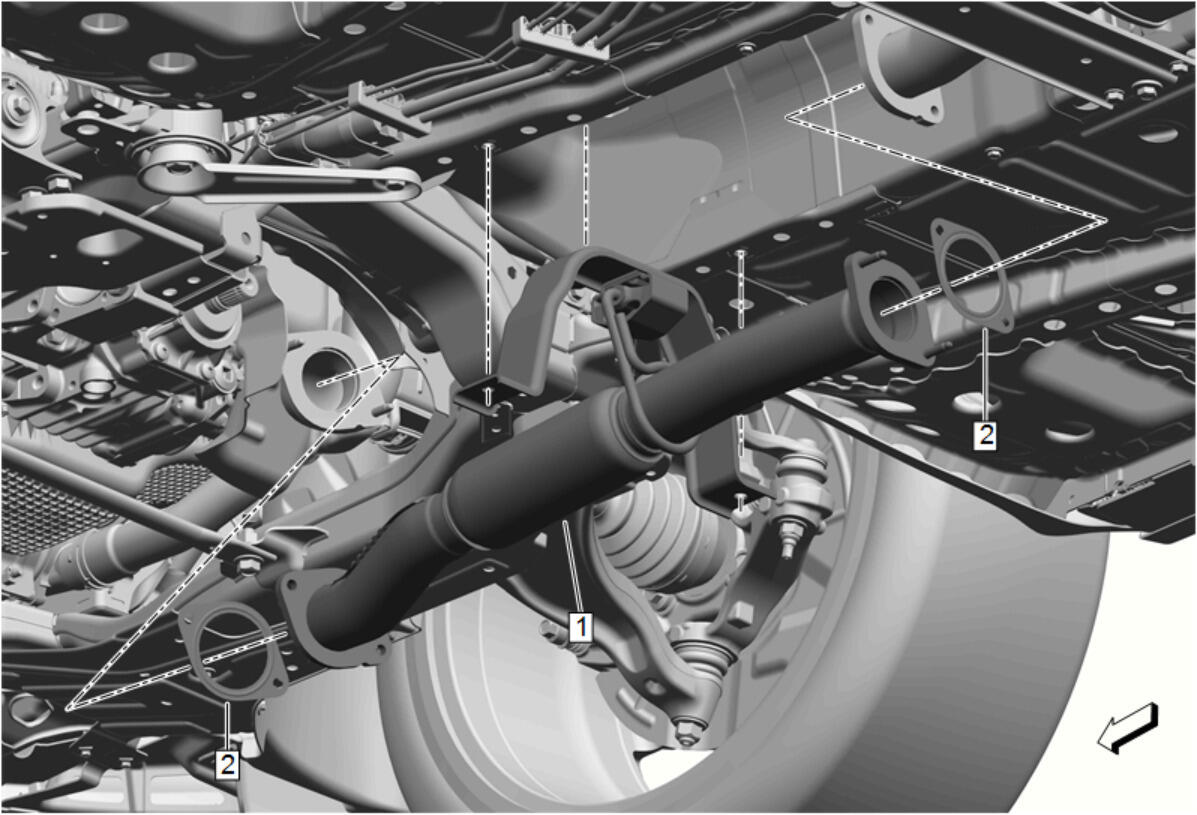

Exhaust Front Pipe (1) - Install - Exhaust Front Pipe Replacement (FWD) , or Exhaust Front Pipe Replacement (AWD)
Courtesy of GENERAL MOTORS COMPANY

Front Compartment Air Deflector (1) - Install - Front Compartment Air Deflector Replacement (Base)
