Rear Toe Adjustment

  1. Raise and support the vehicle. Lifting and Jacking the Vehicle
  2. Measure the wheel alignment. Wheel Alignment Measurement

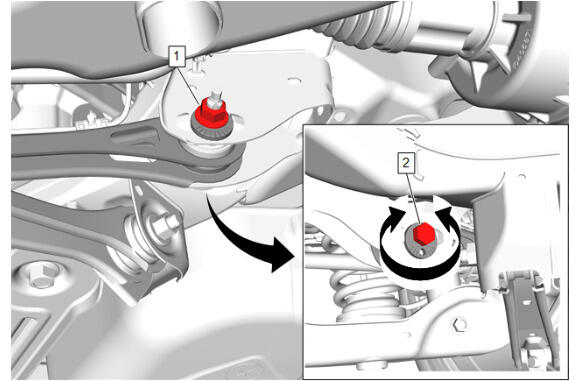

  3. GM5614171Courtesy of GENERAL MOTORS COMPANY

    Rear Suspension Adjust Link Nut (1) - Loosen

  4. Rotate the rear suspension link adjust bolt (2) as necessary to achieve the correct rear toe setting. Wheel Alignment Specifications
  5. Tighten the rear suspension adjust link nut (1) only enough to prevent the loss of the rear toe setting.
  6. Verify the rear toe measurement, readjust if necessary.
    7. CAUTION:

    Fastener Caution

  7. Rear Suspension Adjust Link Nut (1) - Tighten - Adjust Link Replacement
  8. Remove the support and lower the vehicle.
