Garage Door Opener Transmitter Replacement

Courtesy of GENERAL MOTORS COMPANY

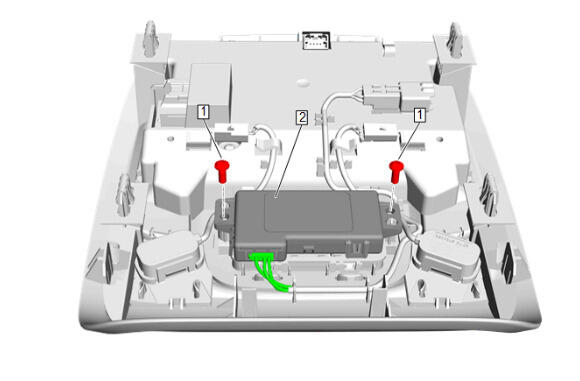

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Roof Console Replacement
1	Roof Console Bolt [2x] CAUTION: refer to Fastener Caution Tighten 1.5 N.m (13 lb in)
2	Garage Door Opener Transmitter Procedure Disconnect the electrical connector.
