Low Frequency Console Antenna Replacement

Courtesy of GENERAL MOTORS COMPANY

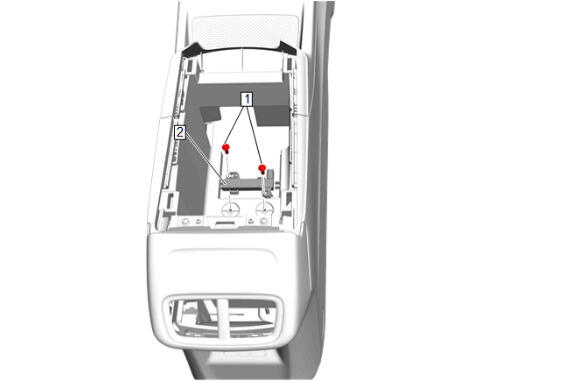

NOTE: Callout items in the following chart represent components shown in graphic above.

Callout	Component Name
Preliminary Procedure Front Floor Console Compartment Replacement
1	Low Frequency Console Antenna Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Low Frequency Console Antenna Procedure Disconnect the electrical connector.

Callout

Component Name

Low Frequency Console Antenna Bolt [2x]

CAUTION:

Tighten
2.5 N.m (22 lb in)

Low Frequency Console Antenna

Procedure
