Installation Procedure

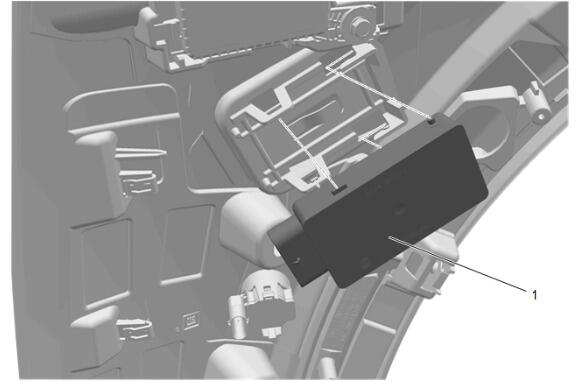

  1. GM5962711Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 1 (1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connectors.
  4. Front Wheelhouse Liner - Right Side - Install - Front Wheelhouse Liner Replacement
