Installation Procedure

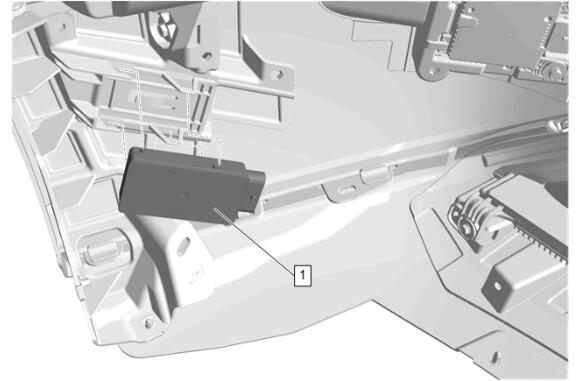

  1. GM5962734Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver Replacement - Position 3 (1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connectors.
  4. Rear Bumper Fascia - Install - Rear Bumper Fascia Removal and Installation
