Installation Procedure

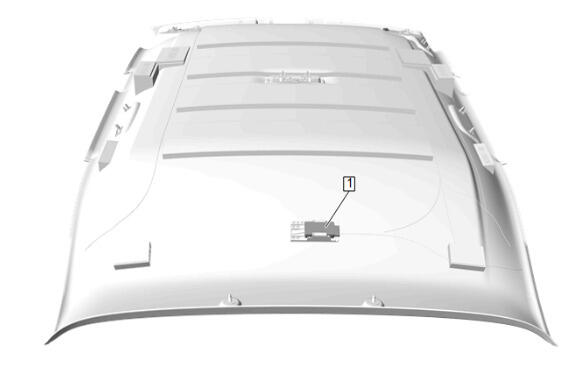

  1. GM6389349Courtesy of GENERAL MOTORS COMPANY

    UHF Low Energy Remote Control Access Sensor Transceiver (1) - Install

  2. Ensure that the retaining tabs are fully secured.
  3. Connect the electrical connectors.
  4. Headlining Trim Panel - Install - Headlining Trim Panel Replacement (with C3U)Headlining Trim Panel Replacement (without C3U)
