Installation Procedure

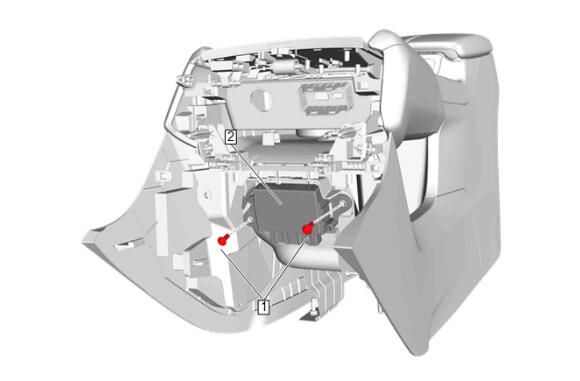

  1. GM6407279Courtesy of GENERAL MOTORS COMPANY

    UHF Short Range Low Energy Remote Control Access Transceiver (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. UHF Short Range Low Energy Remote Control Access Transceiver Bolt (1) - Install and tighten [2x] - Fastener Specifications
  3. Connect the electrical connector.
  4. Front Floor Console - Install - Front Floor Console Removal and Installation
