All Other Models

When the window switch is depressed, current flows through the switch, through one feed wire, the motor, and back to the master switch, where it is led to ground through a common ground wire. When the switch is pressed in the other direction, current flows through the other feed wire, through the motor, back to the master switch, and to ground.

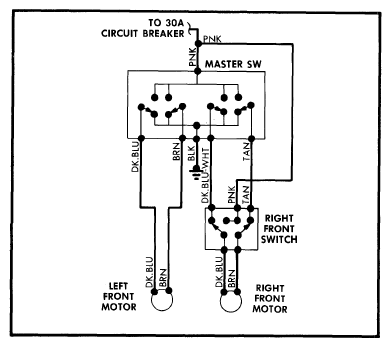

Fig 1: GM Power Window Wiring Diagram 2-Door Models
G09358778Courtesy of GENERAL MOTORS COMPANY
