Electronic Control Module (ECM): Notes

NOTE: The ECM may be located at right side kick panel, glove compartment area, center console area or behind driver's seat.

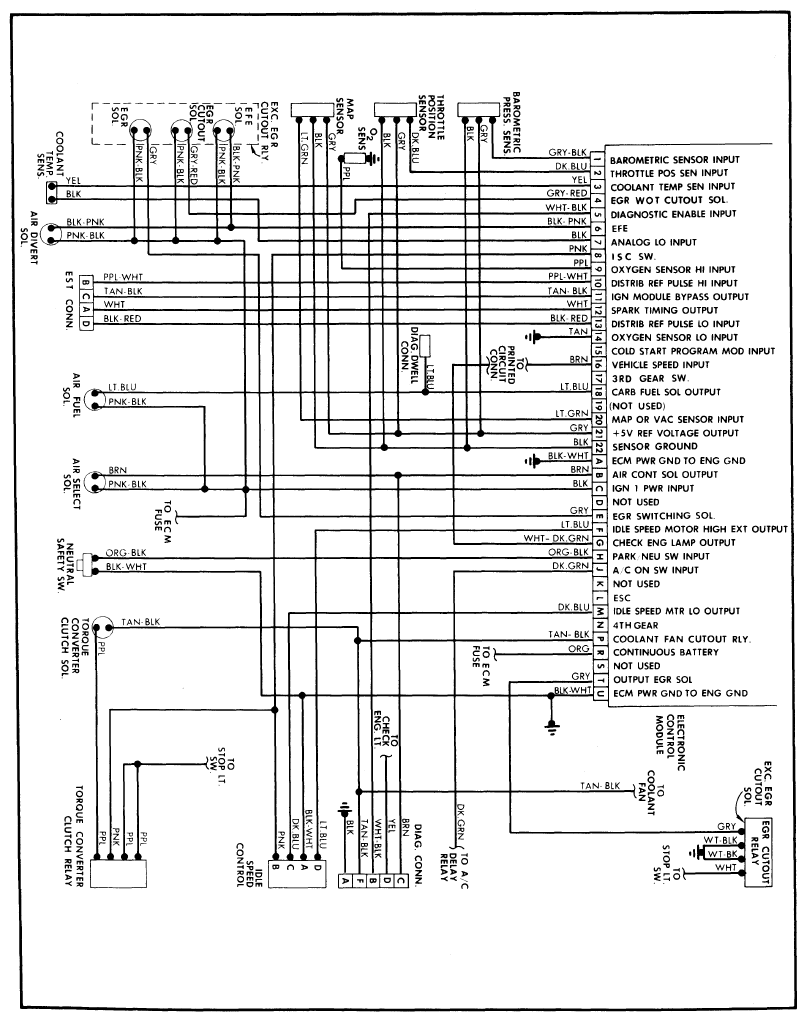

Fig 1: Wiring Diagram for Chevette and T1000

Courtesy of GENERAL MOTORS COMPANY

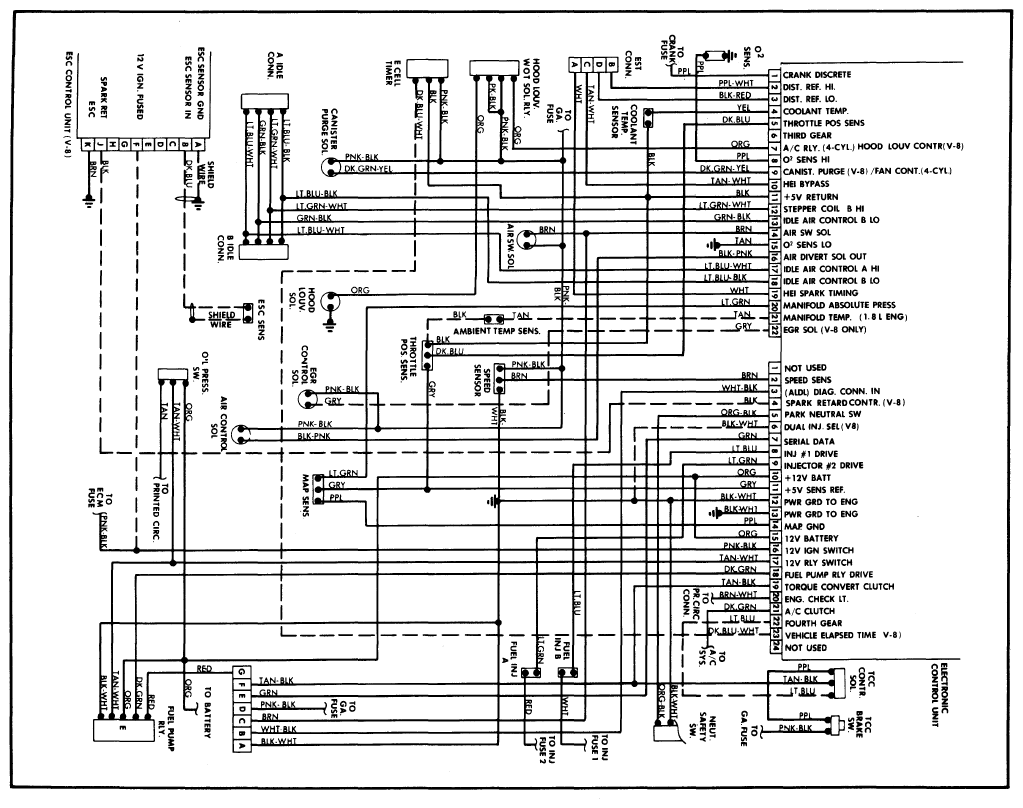

Fig 2: Wiring Diagram for 3.01 VIN E Engine

Courtesy of GENERAL MOTORS COMPANY

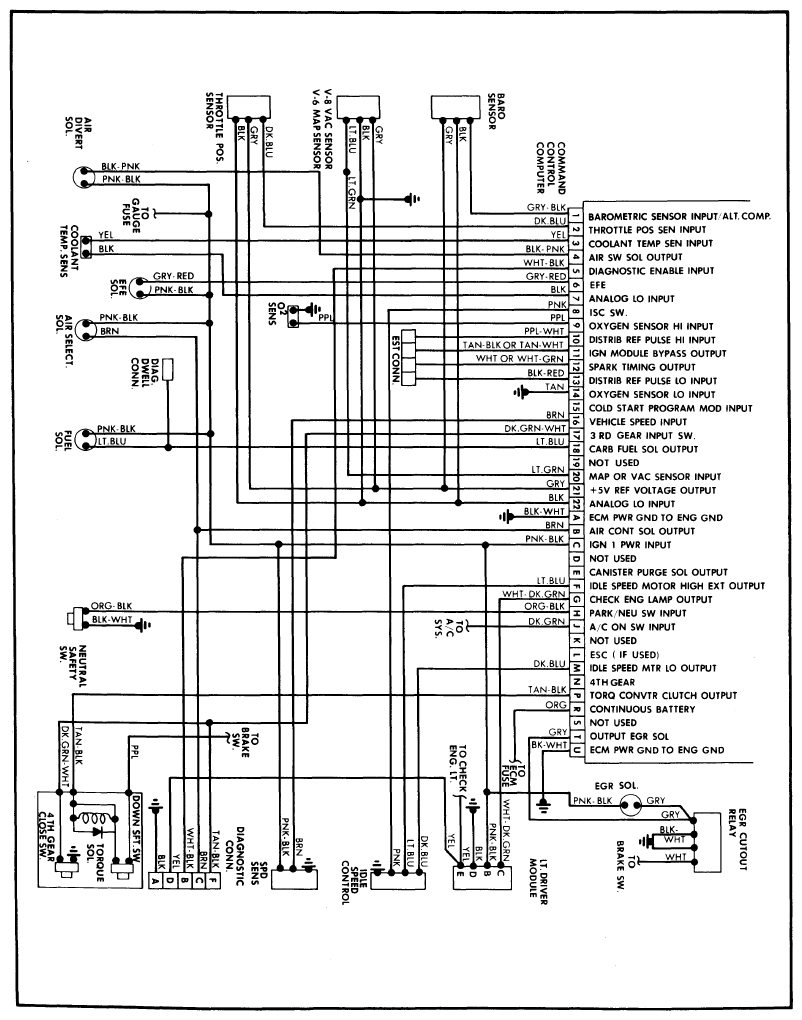

Fig 3: Wiring Diagram for All Electronic Fuel Injection (EFI) Engines

Courtesy of GENERAL MOTORS COMPANY

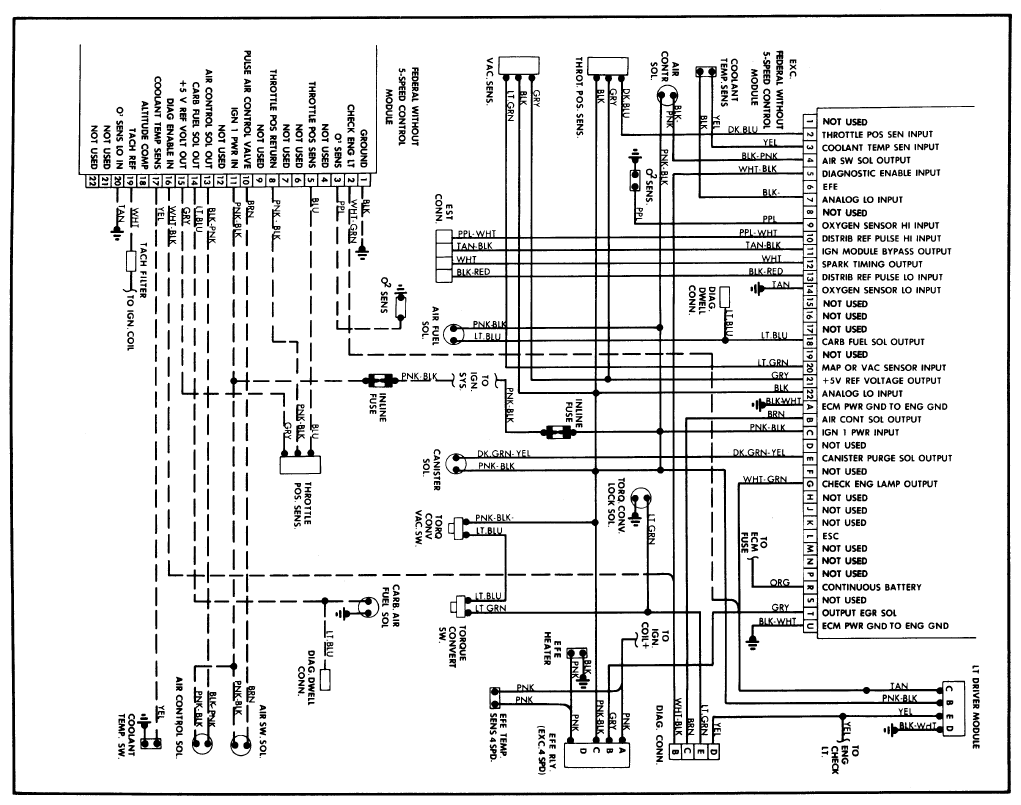

Fig 4: Wiring Diagram for All Other General Motors Engines

Courtesy of GENERAL MOTORS COMPANY
